ThermalAir TA-1000A Desktop System

ThermalAir Desktop Series Temperature Forcing System

The ThermalAir TA-1000 high capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device  temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise
temperature from -25°C to +200°C.

An Evolution in Localized Temperature Testing Equipment

Compact! Plus Performance!

TA-1000 temperature range -25°C to +200°C

  • Eco-Friendly with up to 50% power energy savings
  • Ultra-stable DC temperature control with Smart DC Inverter chiller

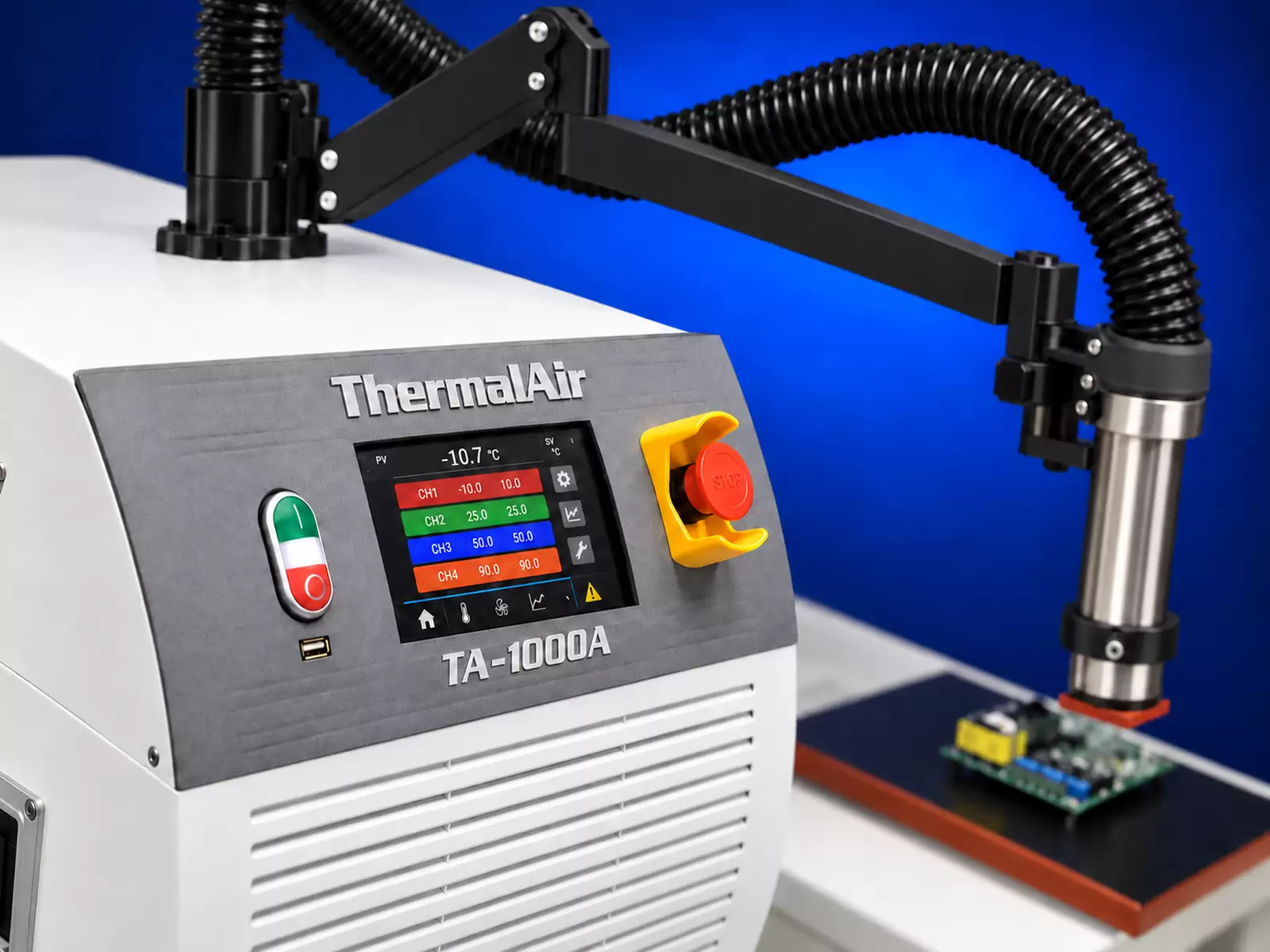

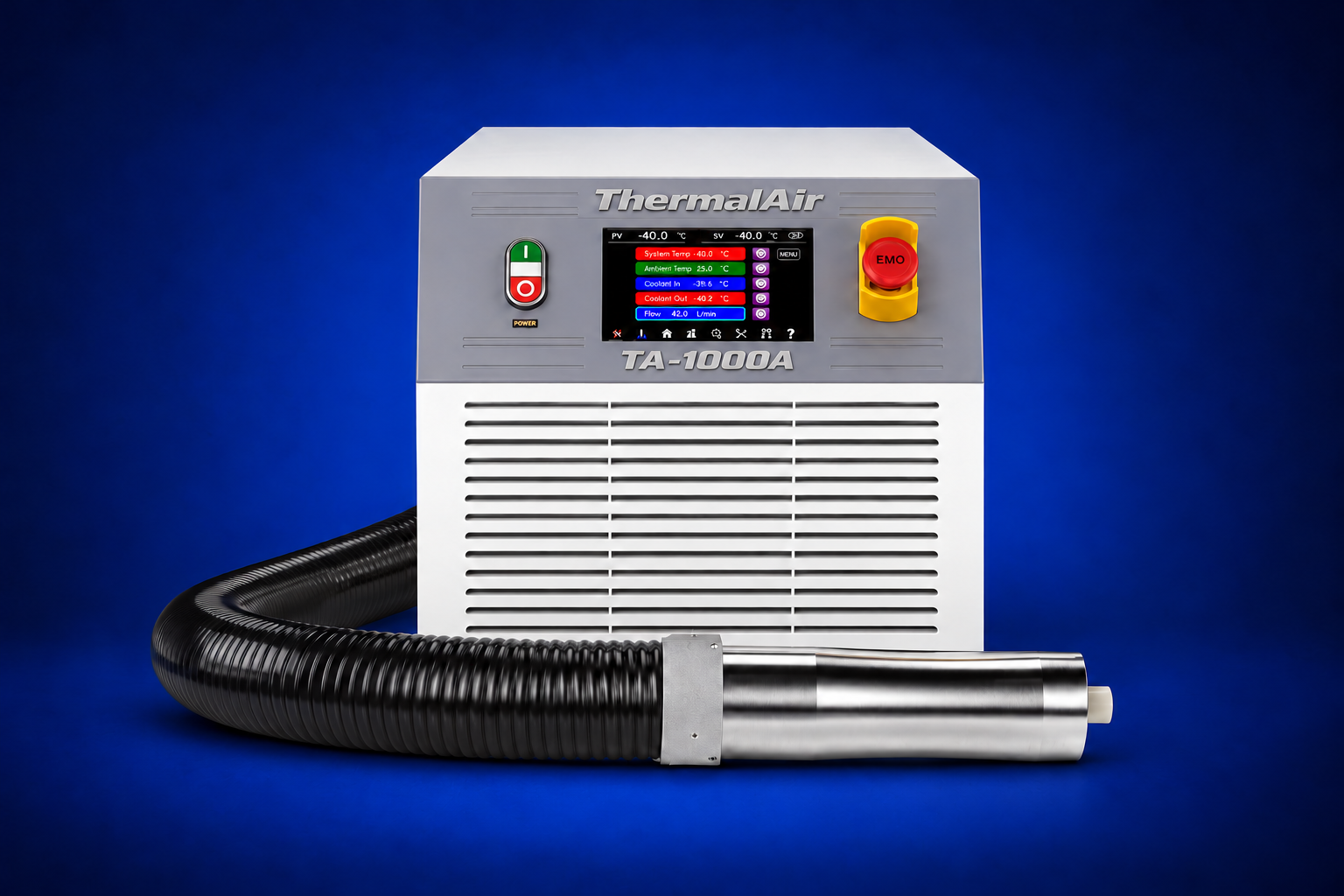

  • Color touch screen display GUI. The front panel touch display
  • Easy touch icons for convenient user operation and intuitive menus
  • Output Flow rate 4 to 12 SCFM Continuous
  • No voltage or frequency configuration needed – one system worldwide
  • Quiet low audible noise for engineering laboratory
  • No LN2 or CO2 required [ Built in Chiller ]

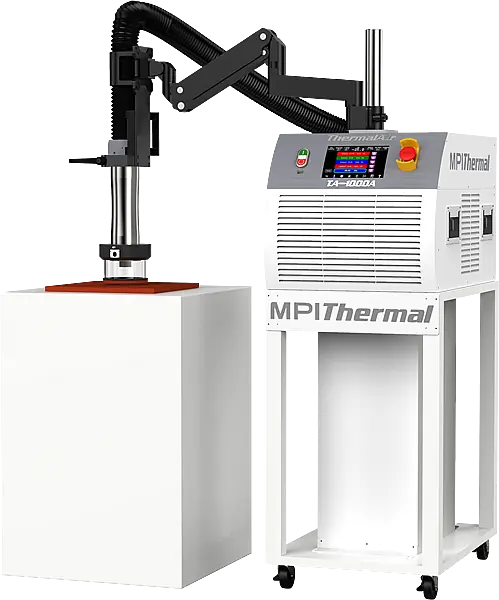

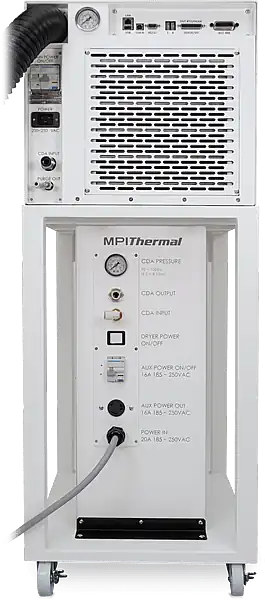

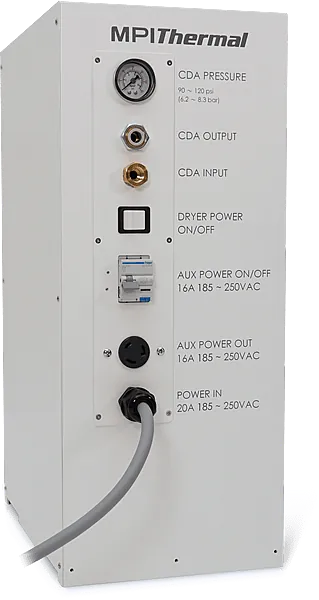

Systems shown here with Optional Air Dryer & Roll Around Cart

Thermal Cycling Test Solutions

-25 . 0


previous arrow
next arrow
Slider

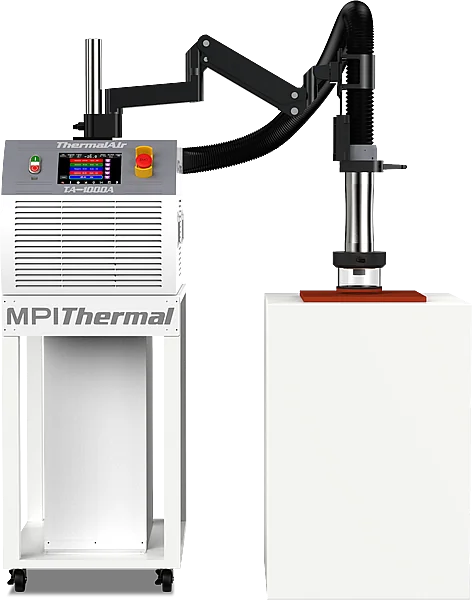

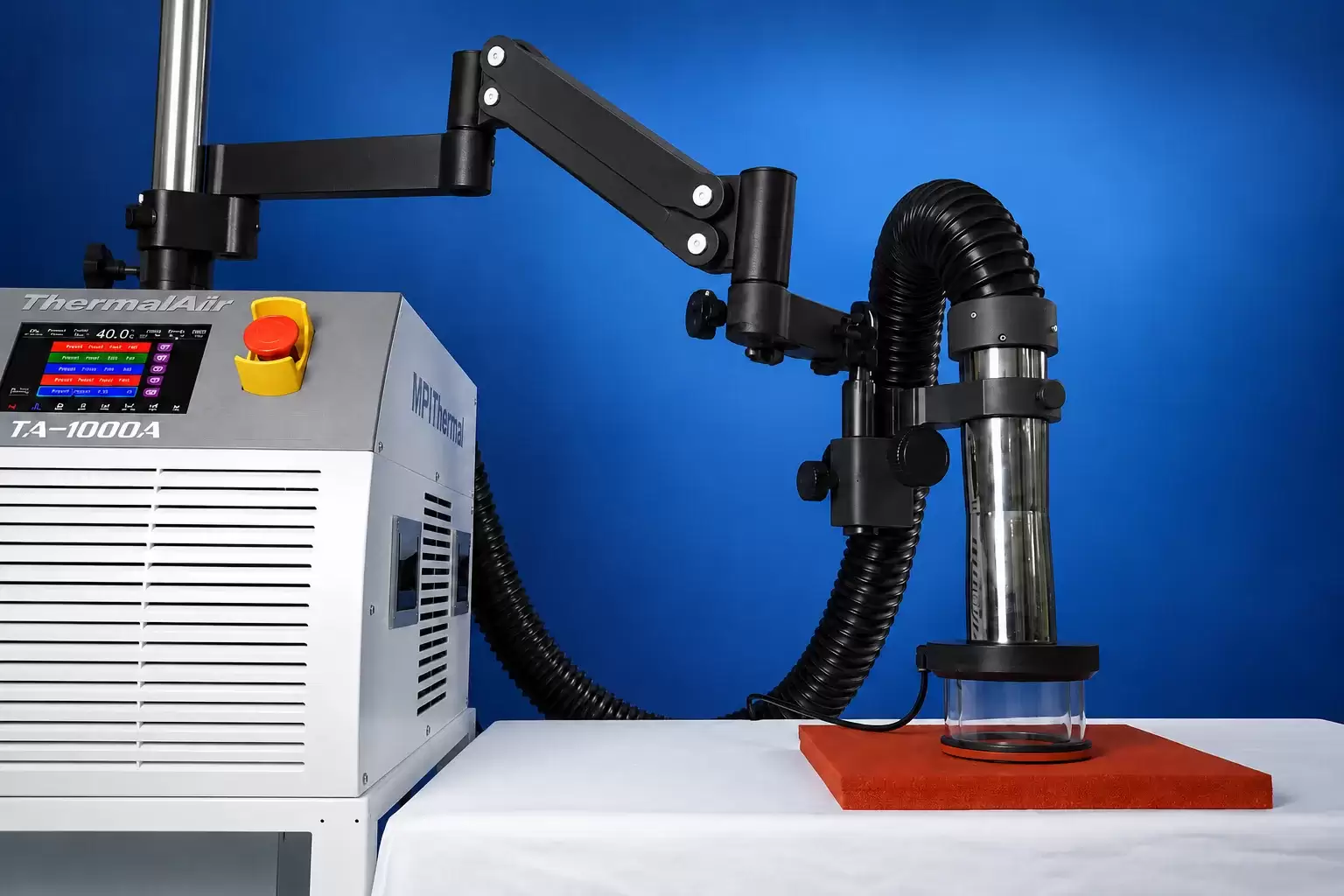

The TA-1000 provides temperatures from -25°C to +200°C ThermalAir Desktop System

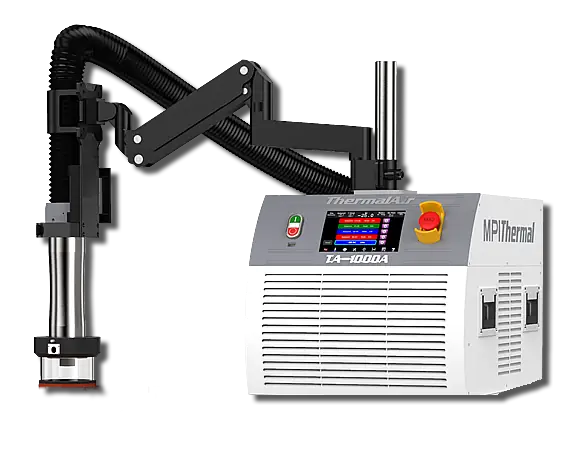

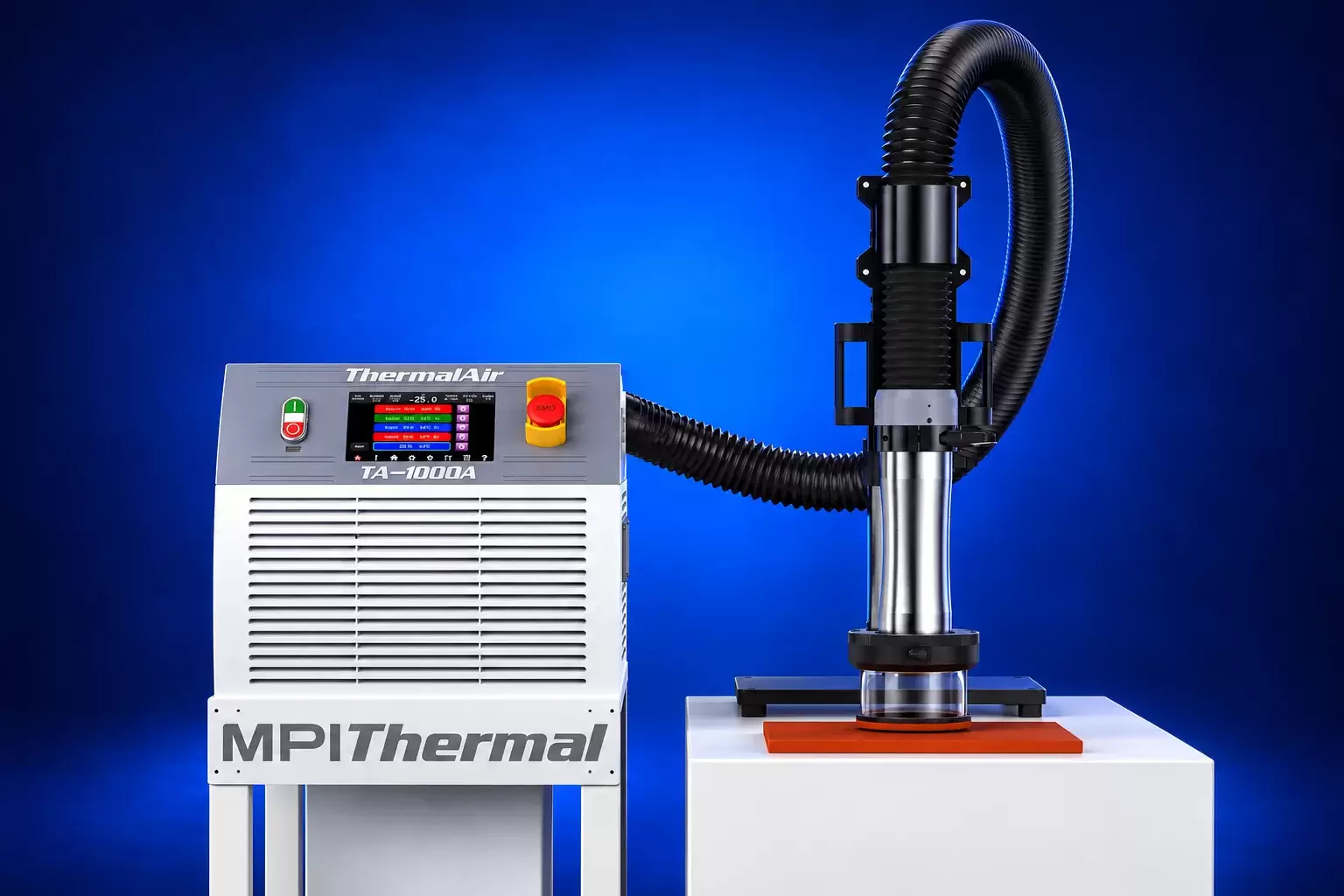

MPI ThermalAir TA-1000 gives the user full temperature control and portability. The system includes full GUI touch screen display, remote user interface rear panel, rear output gas hose and microscope style Thermal Head and Hose arm and stand.

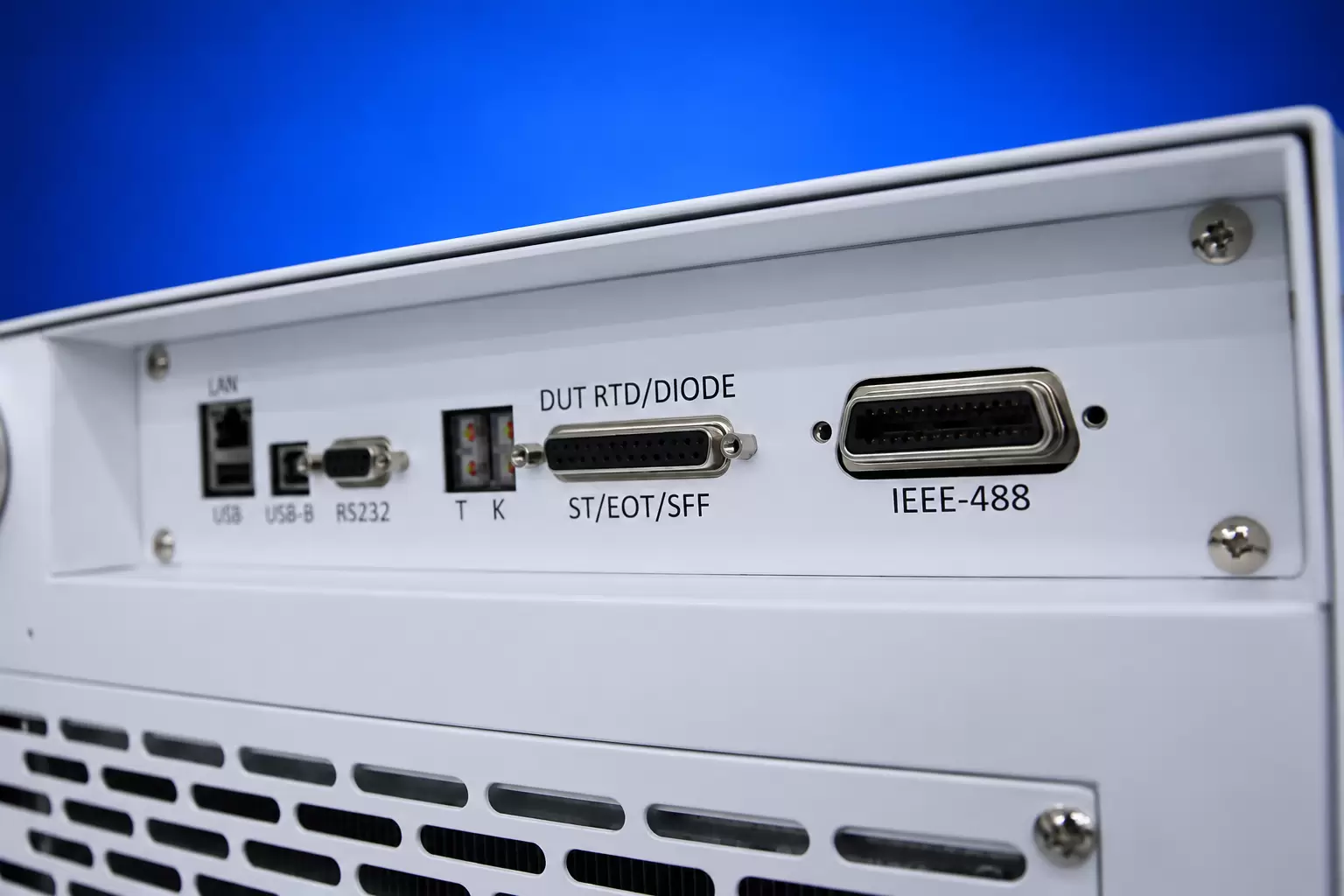

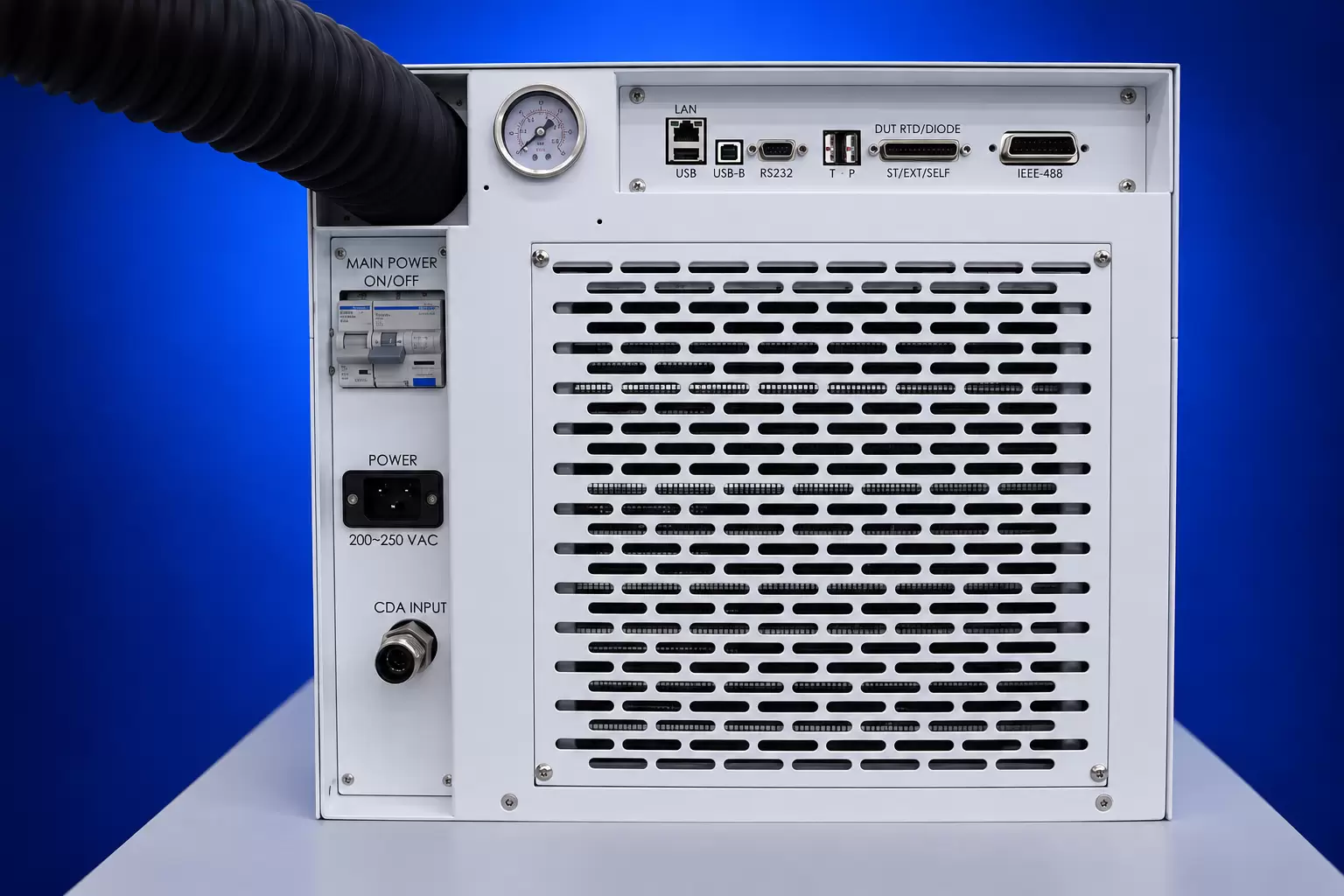

T=Type and K-Type Thermocouple DUT temperature control sensor inputs on the rear panel.

Basic system includes all you need to meet your temperature testing requirements.

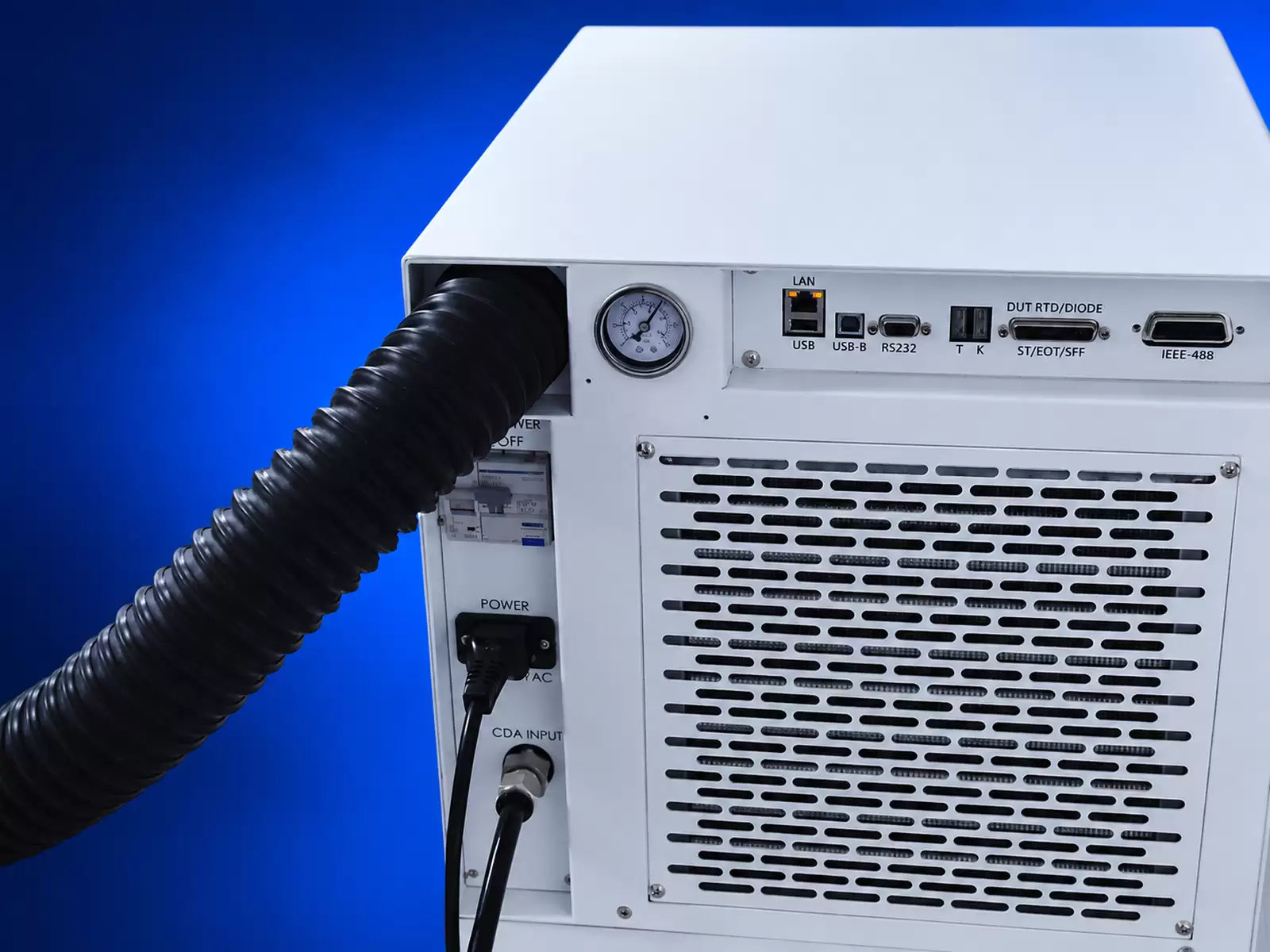

TA-1000 Remote Interface

– IEEE-488.2(GPIB)
– RS-232 Serial
– USB
– Ethernet : LAN/LXI
– LabVIEW drivers

19 inch rack mount system configuration Available


previous arrow
next arrow
Slider

Features and Benefits

Ultra Cold Temperatures are maintained at 50Hz or 60Hz.

The Systems Touch Screen lets operator control temperature, ramp and cycle right at user test bench workstation.

Plug-in Anywhere from 200 to 250VAC. No need for user voltage-configuration when system moved to different locations.

USB and SSD for thermal file management and data logging.

Two User Control Modes – Standard Operator & Temperature Cycle (Temp Cycle, Ramp & Soak).

User Interface and Operations – Remote Control Compatible Modes for existing user test programs.

Download the Datasheets


previous arrow
next arrow
Slider

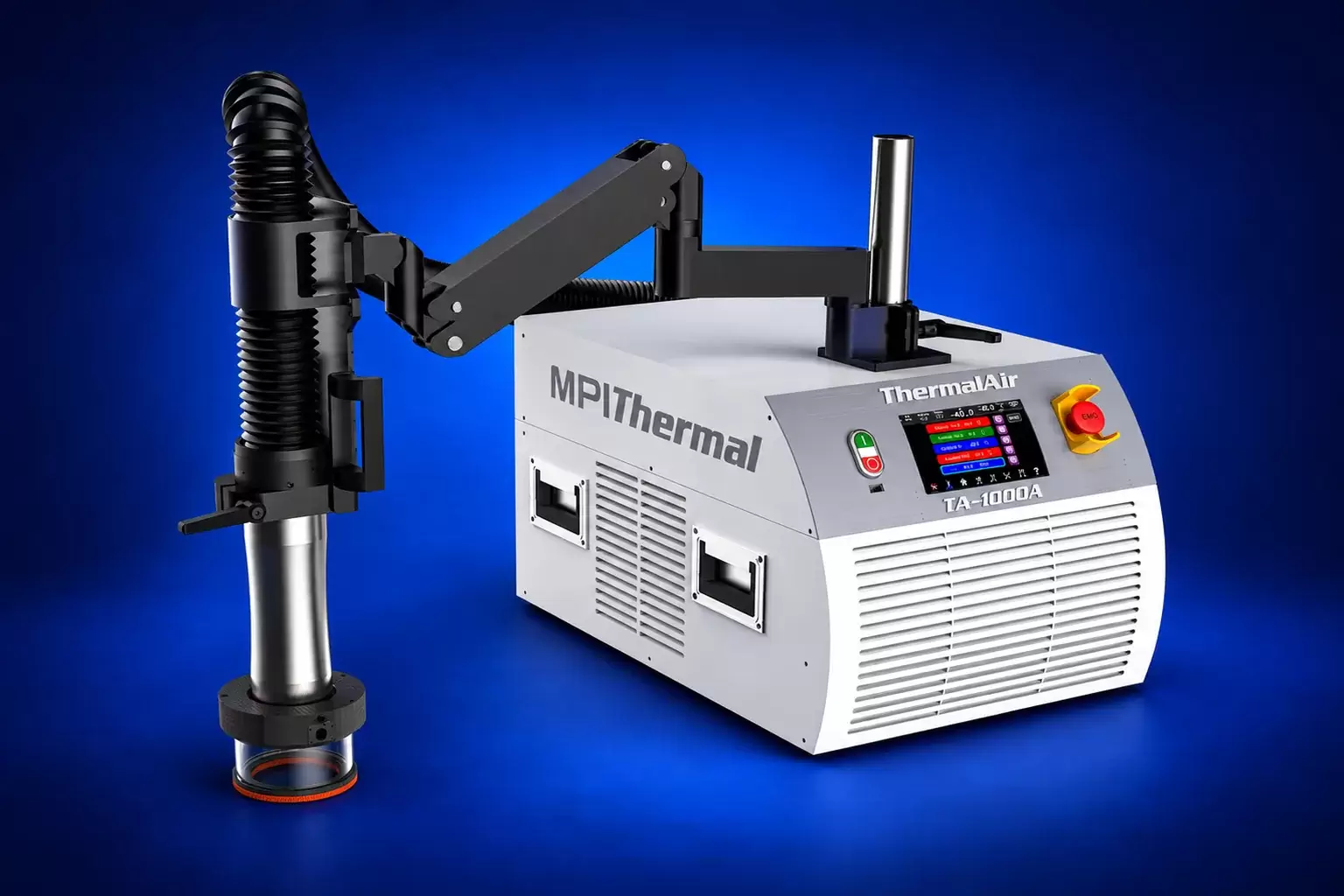

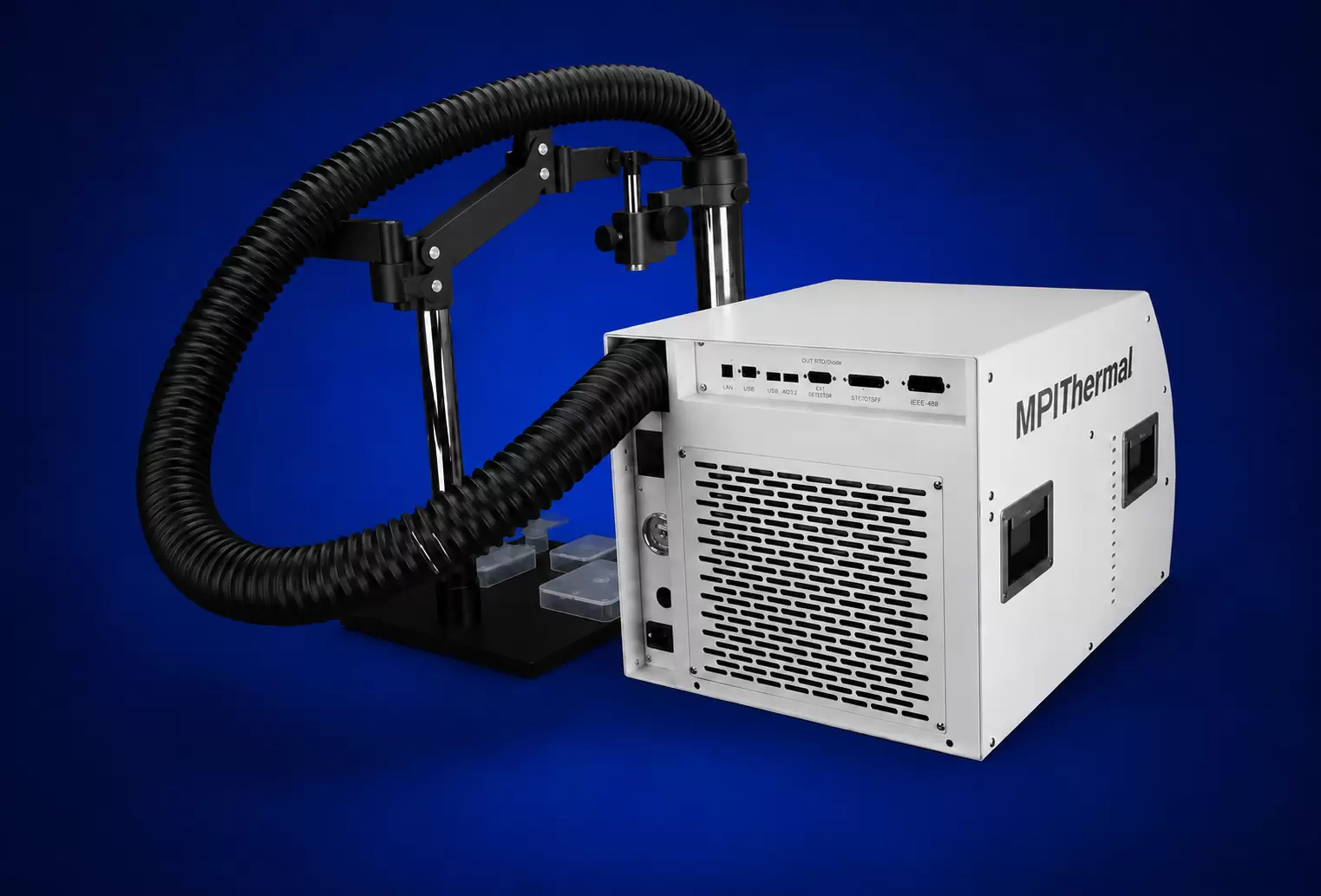

Microscope Style Integraded Arm & Stand
Plus Glass Cap Accessories

The flexible Microscope Style Arm & Stand can be use mounted to the TA-1000A or it can used separately.

The TA-1000A Arm & Stand holsters the systems thermal head and thermal glass cap

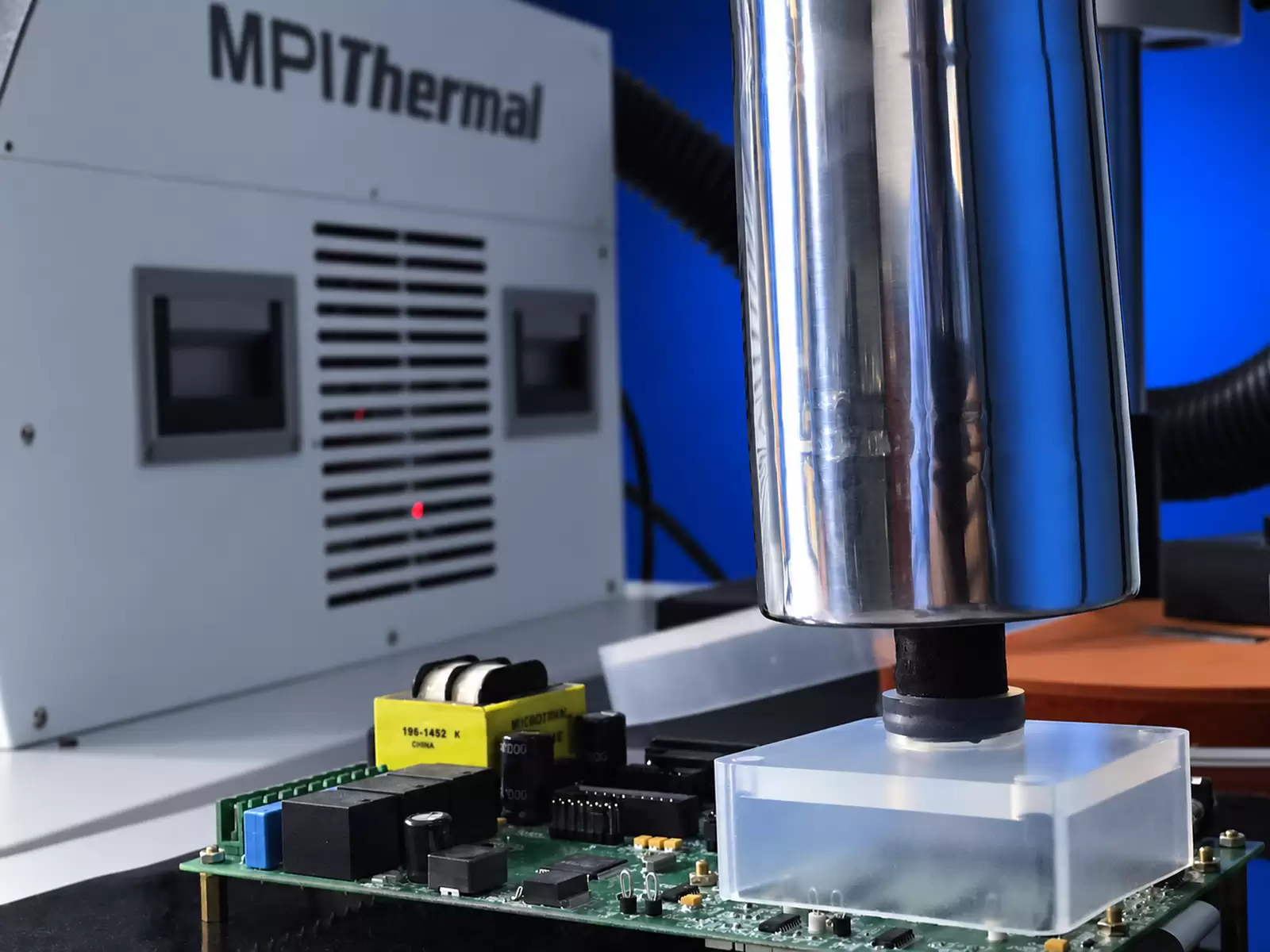

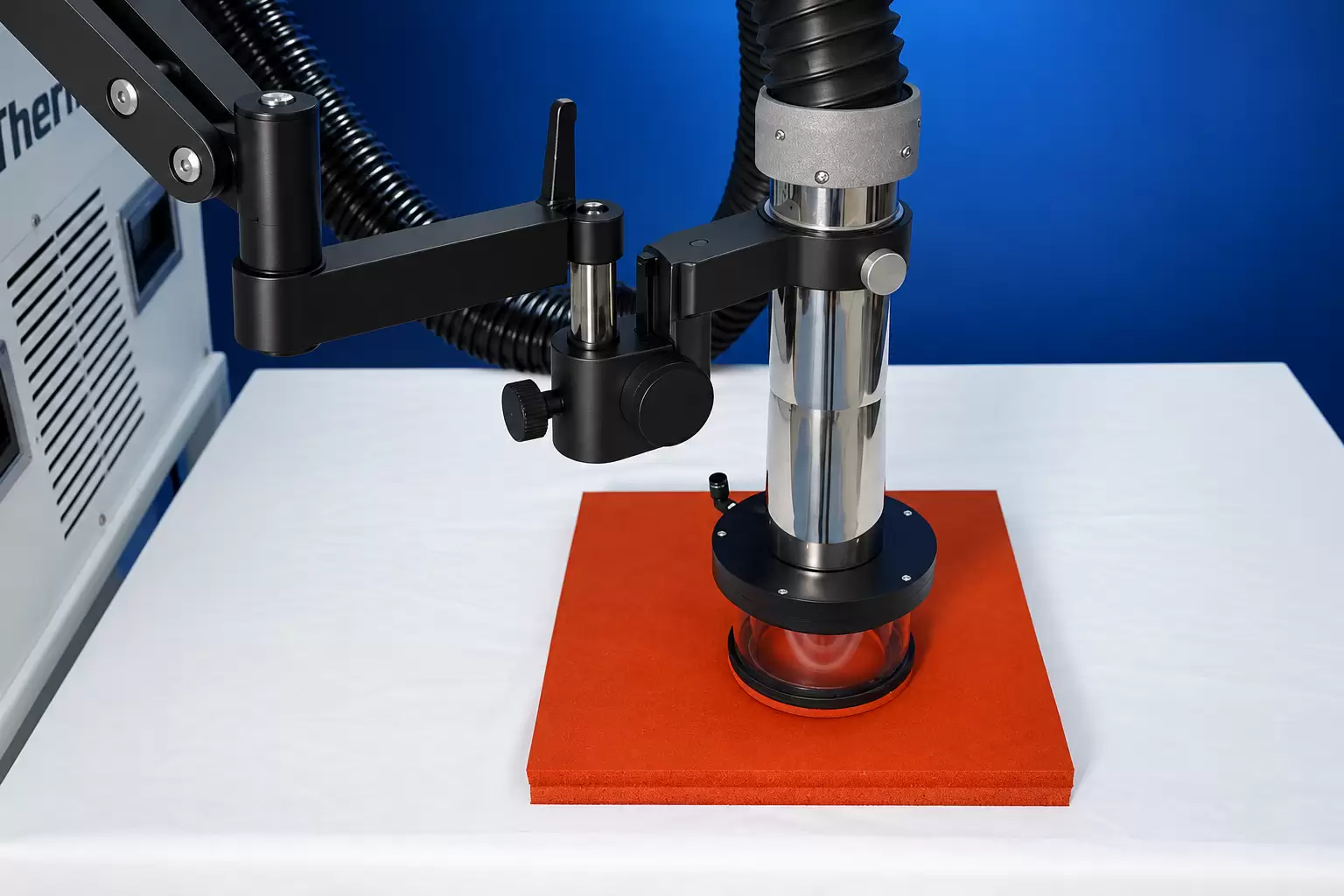

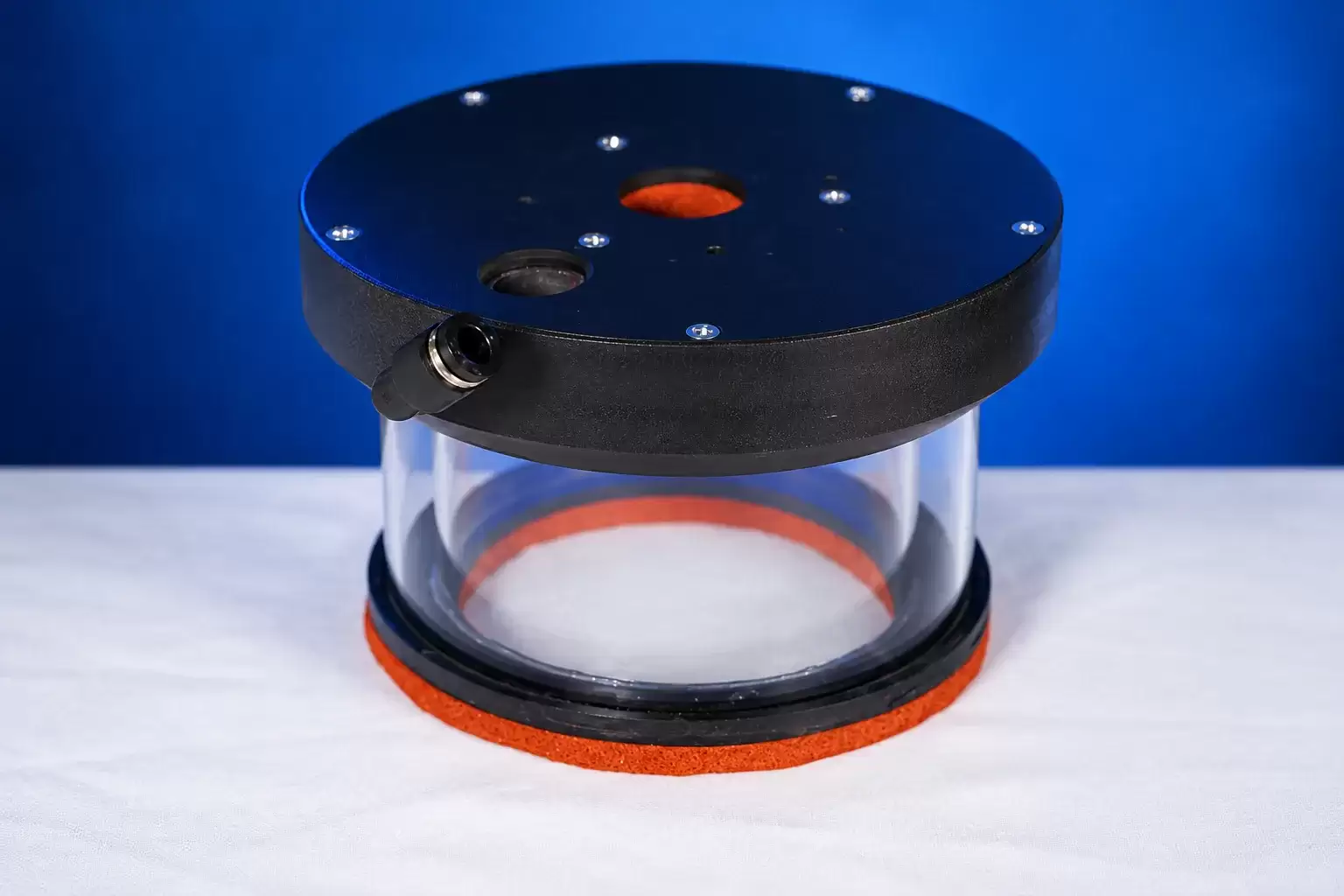

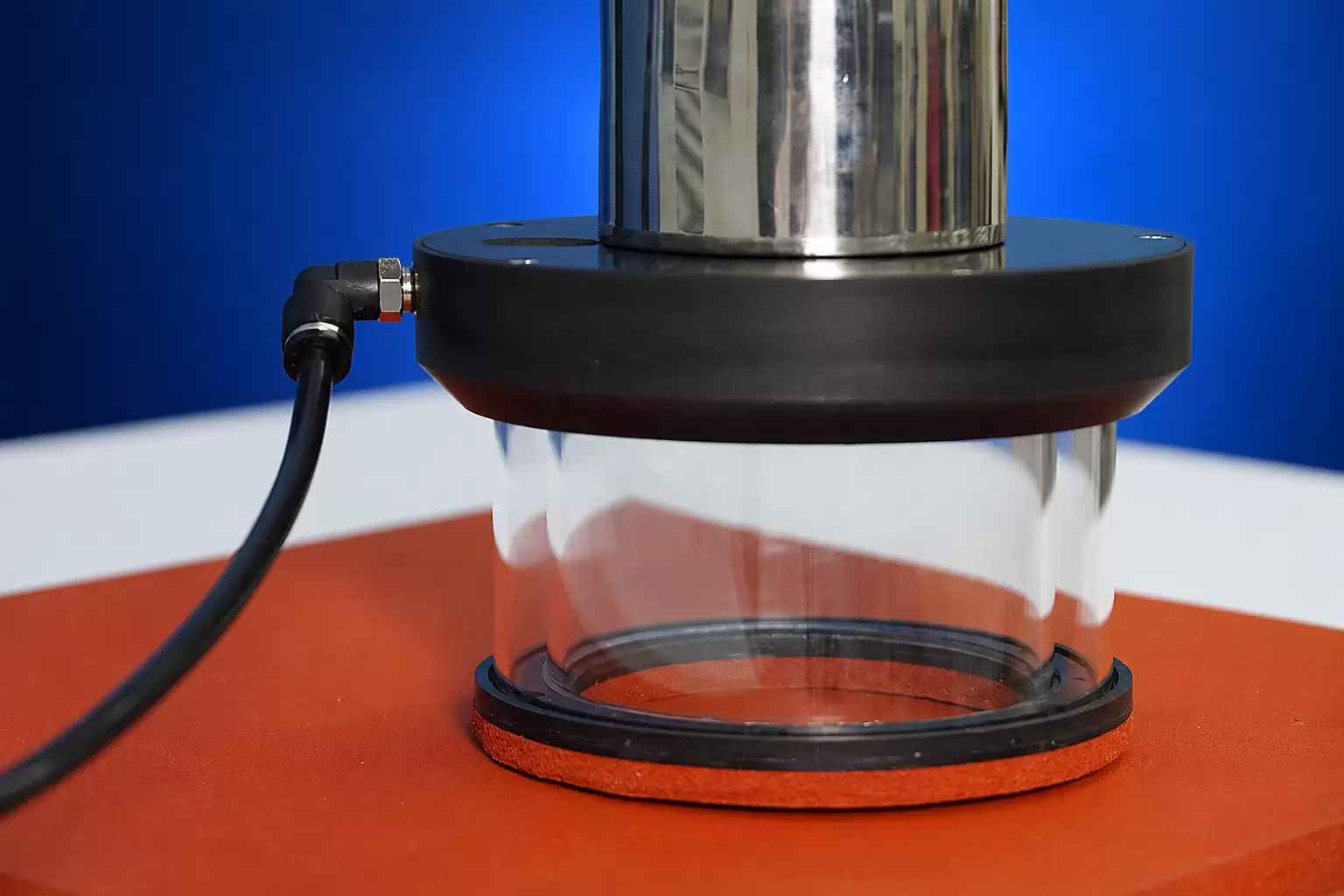

The system has a high temperature 3.28 inch I.D double pane  glass cap enclosure

The TA-1000A includes a rear 6 ft. output flex hose

Two User Control Modes – Standard Operator & Temperature Cycle
(Temp Cycle, Ramp & Soak)

The Microscope Style Arm & Stand positioning is versatile and is manually adjusted to accommodate most test setups

Download the Datasheets

Temperature Forcing Systems | Thermal Test Systems  | Environmental Test Chambers | Temperature Cycling Test | Thermal Test Equipment | Thermal Shock

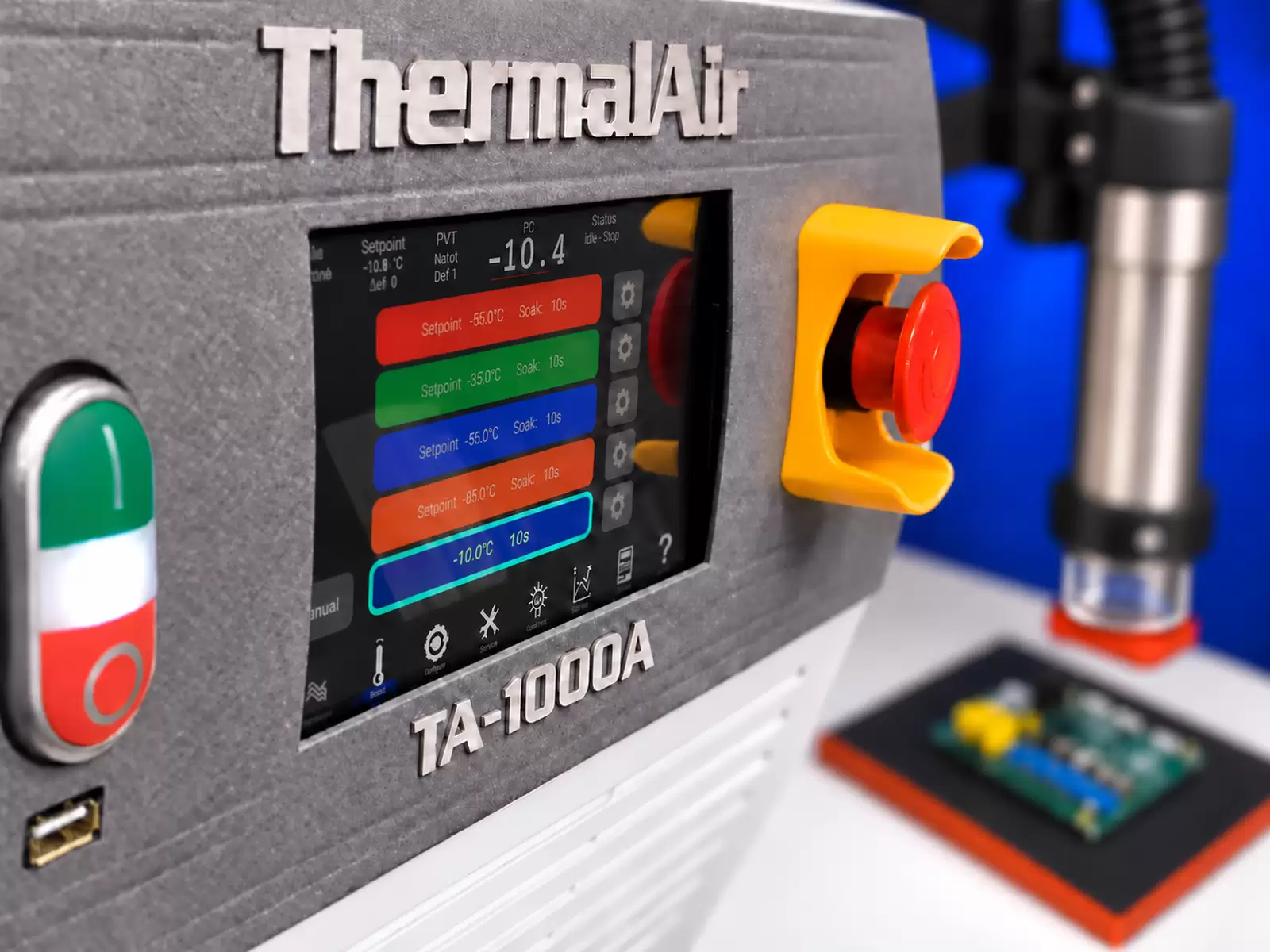

ThermalAir Color Touch Screen GUI

6 Users Friendly Easy Icons

  • MAIN  Users Defined Preset Temperature Settings
  • CYCLE  Hot/Cold Temperature Cycle User Profiles
  • SETUP Save/Load Temperature Parameters
  • UTILITIES Configuration, Calibration & Diagnostics
  • REVIEW Real-time & History  – Full Temperature Graphs
  • DATALOG  Chart Time & Temperature to USB

previous arrow
next arrow
Slider

ThermalAir TA-1000A Dimensions & Working Height

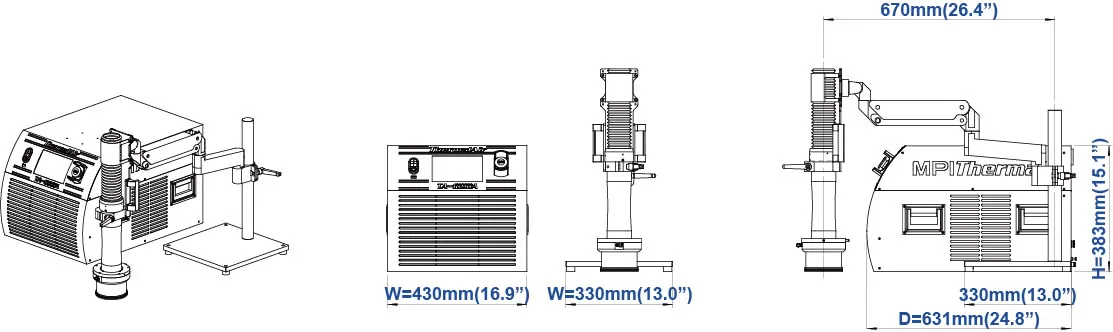

Config. 1 – Separate Microscope Style Arm & Stand

Thermal Stream Dimensions

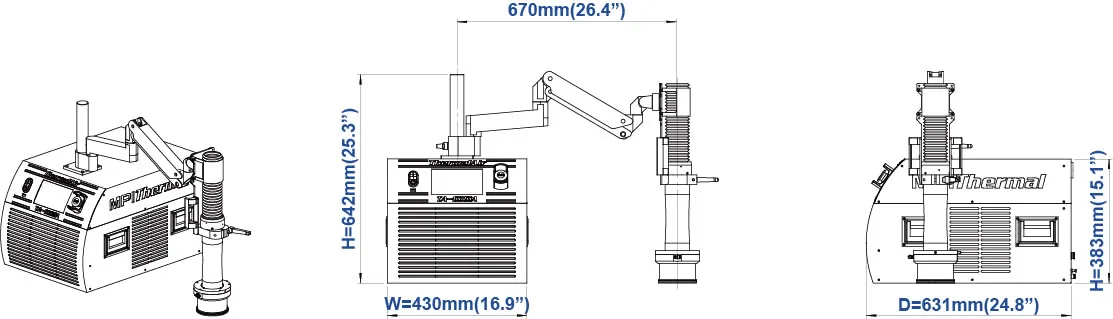

Config. 2 – Integrated Microscope Style Arm & Stand

Thermal Stream Dimensions
Thermal Stream

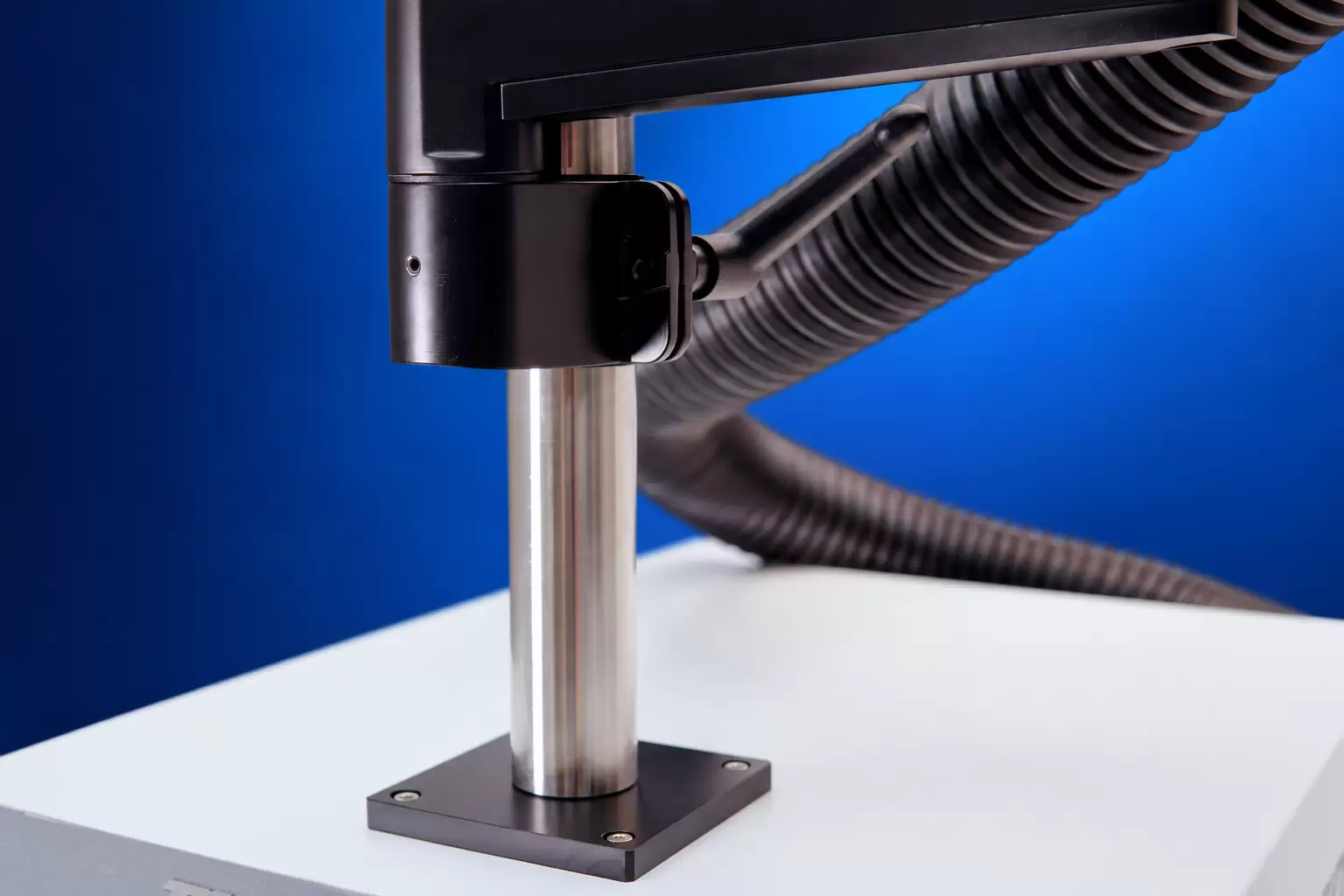

ThermalAIr TA-1000A Microscope Style Arm & Stand can be easily integraded to the top of base unit and a 330mm(13.0″) x 330mm (13.0″) base plate is inculded for standalone operation

Temperature Forcing Systems | Thermal Test Systems  | Environmental Test Chambers | Temperature Cycling Test | Thermal Test Equipment | Thermal Shock

MPI Thermal temperature inducing equipment is portable and can easily be moved from one test station to another. Product engineers and manufacturers can use our ThermalAir TA-1000 system to quickly bring their parts to temperature right at the test location.

Temperature cycling, thermal profiling and other environmental temperature conditioning is why MPI Thermal systems are part of the manufacturing temperature test processes.

MPI Thermal TA-Series of thermal air steam temperature forcing systems provide a wide varity of hot and cold temperatures in order to simuli at the point of test.

The ThermalAir TA-5000 Accessories & Thermal End Effectors

The ThermalAir TA-5000 Series Temperature Forcing System offers a fully array of accessories to help customize your thermal test application.
