Thermal End Effectors
The ThermalAir TA-5000/TA-3000 series has a wide range of accessories that are attached to the ThermalAir Stream Arm and Flex Hose located at the end of Thermal Head output gas nozzles.
They incorporate an intuitive full funtion for the ThermalAir users with the flexibility to accurately test in a variety of ways at the thermal test workstation.
The TA-5000A/TA-3000A can also be used with an Thermal End Effector adapters interfaced to the end of Thermal Head Arm and Stand, designed to adapt to the end users device under test. The exact use of this device depends on the users thermal test application.
Customize Your Temperature Testing Application
Temperature Testing – Temperature Cycling Test – Temperature Profiling System – Temperature Cycling Test – Rapid Temperature Cycling

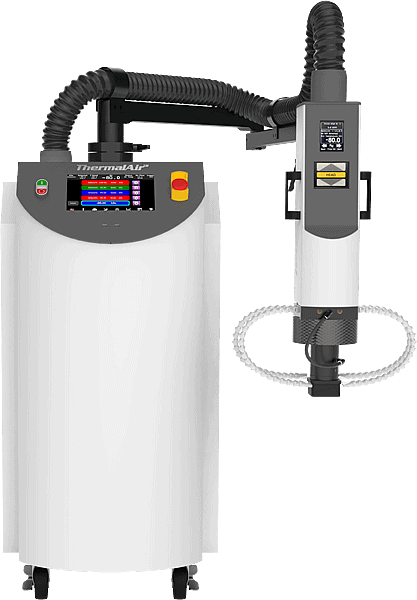

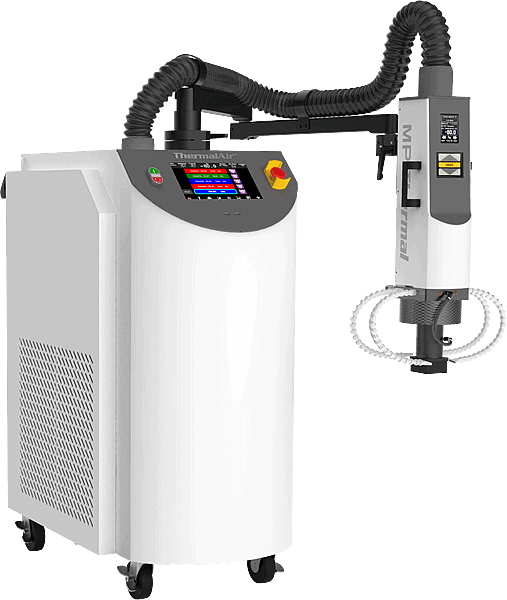

TA-5000A with Thermal End Effectors
OUTPUT TEMPERATURE CONTROL
ThermalAir TA-5000A can control by user setting, the ramp rate, temperature transition time as fast as -55°C to +125°C in less than 10 seconds.
HOW DOES IT WORK
The TA-5000’s built-in air dryer and filtering system sends clean dry air (CDA) through its powerful internal chiller / heat exchanger to delivers hot & cold temperatures from -80°C up to +225°C.
User can control flow rate from 4 to 24 SCFM. The ThermalAir temperature systems are all self-contained. You just plug it in and it’s ready to start thermal testing your parts. [No configuration required]
ThermalAir Series of Thermal End Effectors
The ThermalAir TA Series of temperature forcing and localized thermal inducing systems have a wide range of accessories that are attached to the ThermalAir Stream Arm located at the end of Thermal Head output gas nozzles.
The TA-5000A can also be used with a Thermal End Effector adaptors interfaced to the end of Thermal Head Arm and Stand, designed to adapt to the end users device under test. The exact use of this device depends on the users thermal test application and the size and location of the part being tested.
MPI Thermal systems have a wide variety of Thermal End Effectors to accommodate the user engineer test broad. When other components and rigid cables are to close proximity of the single device that requires thermal testing, a thermal end effector adapter can be used. In these cases where the standard ThermalAir system thermal glass cap enclosure cannot be used, a thermal end effector can be easily connect to the TA-5000A thermal head gas output nozzle (no tools required).
Robot End Effector – End Effector – Robot End Effector – Thermal Cycle End Effector – Thermal End Effectors – End Effector Test
Customize Your Temperature Test Applications
The TA-5000A can also be used with an Thermal End Effector adapters interfaced to the end of Thermal Head Arm and Stand, designed to adapted with the end users device under test. The exact use of this device depends on the users thermal test application.
- Eco-Friendly with up to 50% power energy savings
- Ultra-stable DC temperature control with smart DC energy efficient chiller
- Built-in color touch screen display GUI. The front panel touch display easyicons makes for convenient user operation and intuitive user friendly menus
- No voltage or frequency configuration needed– one system worldwide
- Quiet low audible noise for engineering laboratory
- No LN2 or CO2 required [ Built in Chiller & Air Dryer ]
Thermal Cycling Test Solutions
Environmental Test Chambers – Temperature Cycling Test – Temperature Chambers – Thermal Test Equipment – Test Chambers
Thermal Glass Cap Enclosures & Thermal End Effectors
The TA-5000A can be used with an array of Thermal Glass Caps and Thermal End Effector adapters interfaced to the end of the Thermal Head Arm and Stand. These
TA-5000A accessories are designed to adapt with the end users temperature test application and the DUT (device under test). The size and shape of the Thermal Glass Cap selected and depends on the users thermal test application.

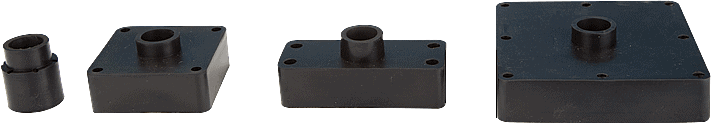

The TA-5000A has many size thermal glass caps, thermal shrouds and custom Compact Chambers.

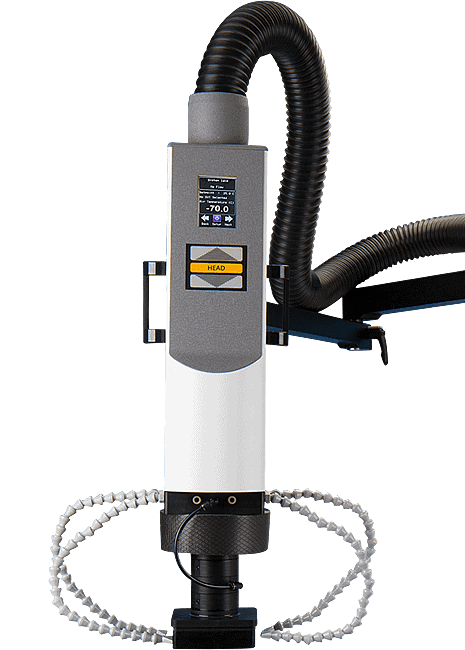

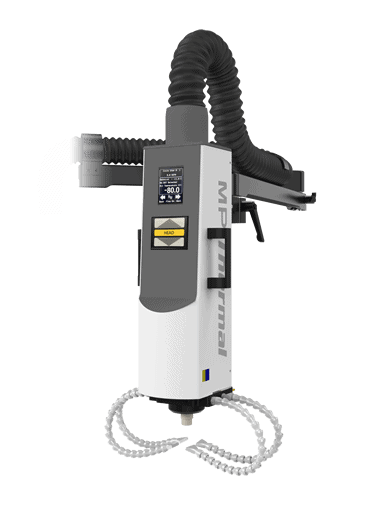

Thermal End Effector I-Purge Adapter – Easy Attachment
This video shows the easy setup and adjustment of Thermal End Effector – i-Purge Adapter to the end of Thermal Head without any tools required.
Whether the users are testing semiconductor devices, sensors, fiber optics, microwave RF hybrids, or any type of test articles, the ThermalAir Accessories can connect to end user’s test setup in a variety of ways to bring temperature capabilities directly to your test bench top or test station.
