ThermalAir TA-1000B Rack Mount Test System

ThermalAir Series Temperature Forcing System

The ThermalAir TA-1000B high capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device  temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperature from -25°C to +200°C.

An Evolution in Localized Temperature Testing Equipment

TA1000B w/rack - Temperature Testing System | Temperature Simulation Test Equipment

-25°C to +200°C

Temperature Testing Systems | Thermal Cycling Test Systems  | Environmental Testing Systems | Temperature Simulation Testing | Thermal Test Equipment | Thermal Cycling Test Equipment

Compact! Plus Performance!

TA-1000B temperature range -25°C to +200°C

  • Eco-Friendly with up to 50% power energy savings
  • Ultra-stable DC temperature control with Smart DC Inverter chiller
  • Color touch screen display GUI. The front panel touch display
  • Easy touch icons for convenient user operation and intuitive menus
  • Output Flow rate 4 to 12 SCFM Continuous
  • No voltage or frequency configuration needed – one system worldwide
  • Quiet low audible noise for engineering laboratory
  • No LN2 or CO2 required [ Built in Chiller ]

Thermal Cycling Test Solutions

TA1000B

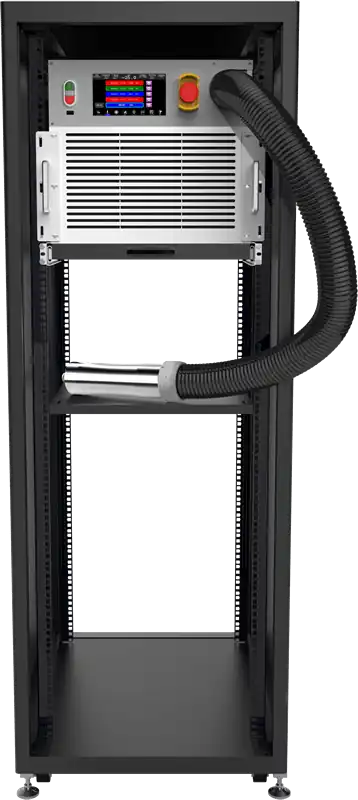

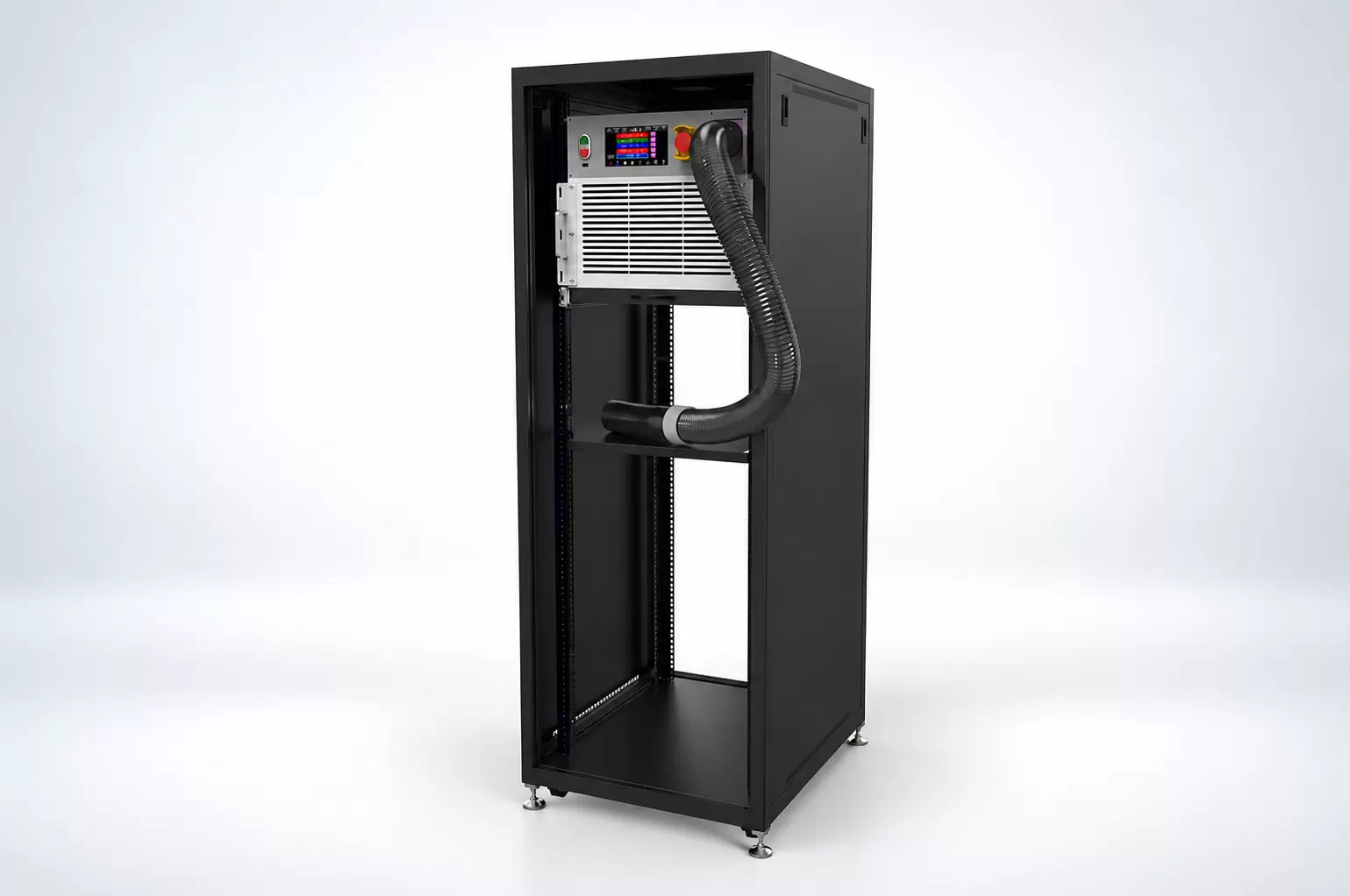

TA-1000B square chassis for 19 inch rack mount requirement with 6 ft. output hose from the front panel.

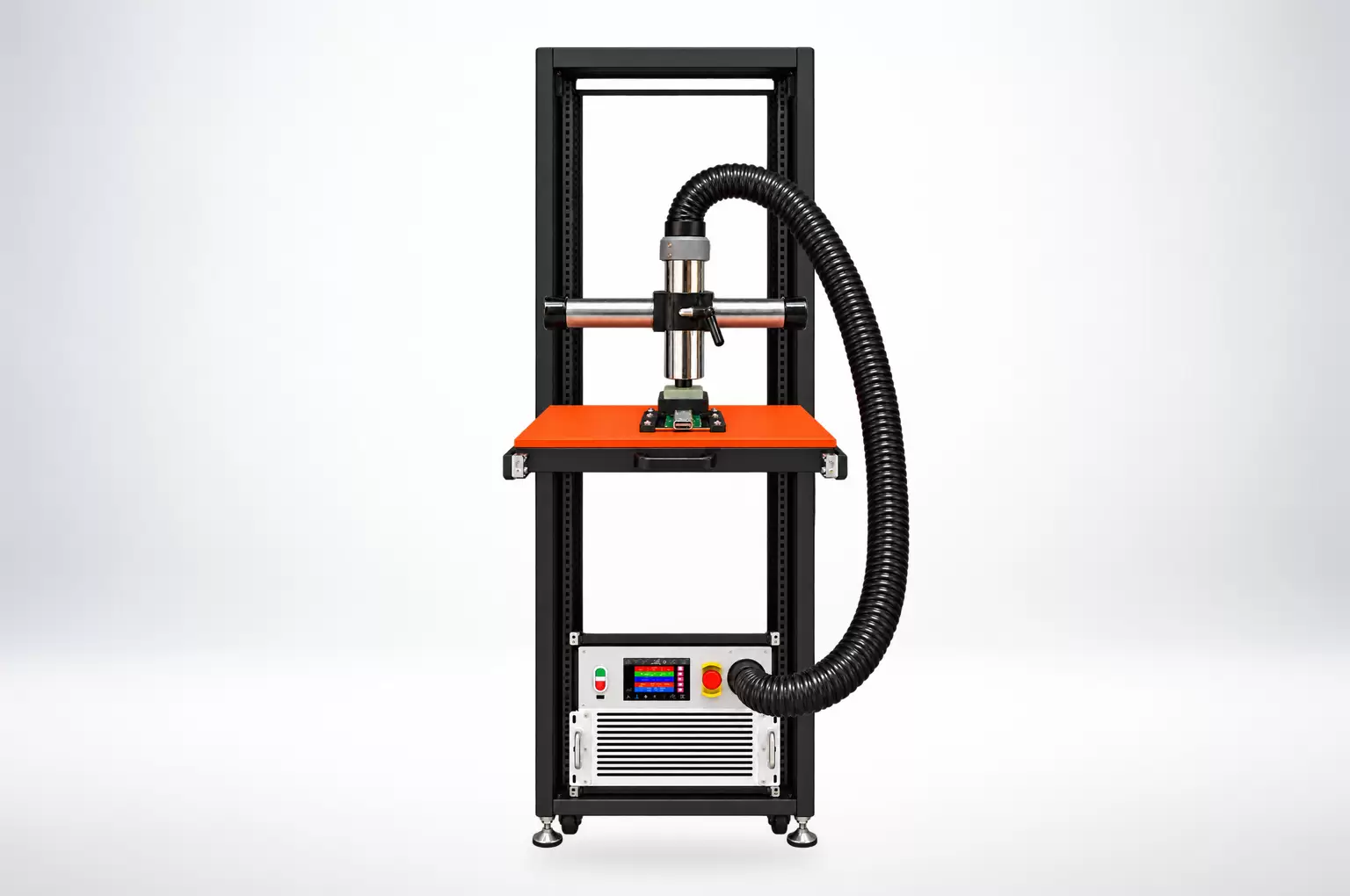

TA-1000B Rack Mount Temperature Test System

Ultra cold temperatures are maintained at 50Hz or 60Hz.

The systems touch screen lets operator control temperature settings, ramp and cycle right at user test bench workstation.

Plug-in anywhere from 185 to 250 VAC. No need for user voltage re-configuration when system moved to different locations.

USB for thermal file management and data logging.

Two User Control Modes – Standard Operator & Temperature Cycle (Temp Cycle, Ramp & Soak)

User Interface and Operations – Remote Control Compatible Modes for existing user test programs.

   – Center Control Color Touch Screen Display
   – IEEE-488.2 (GPIB), USB, Ethernet, Serial, LXI
   – Intranet via LAN
   – LabVIEW drivers

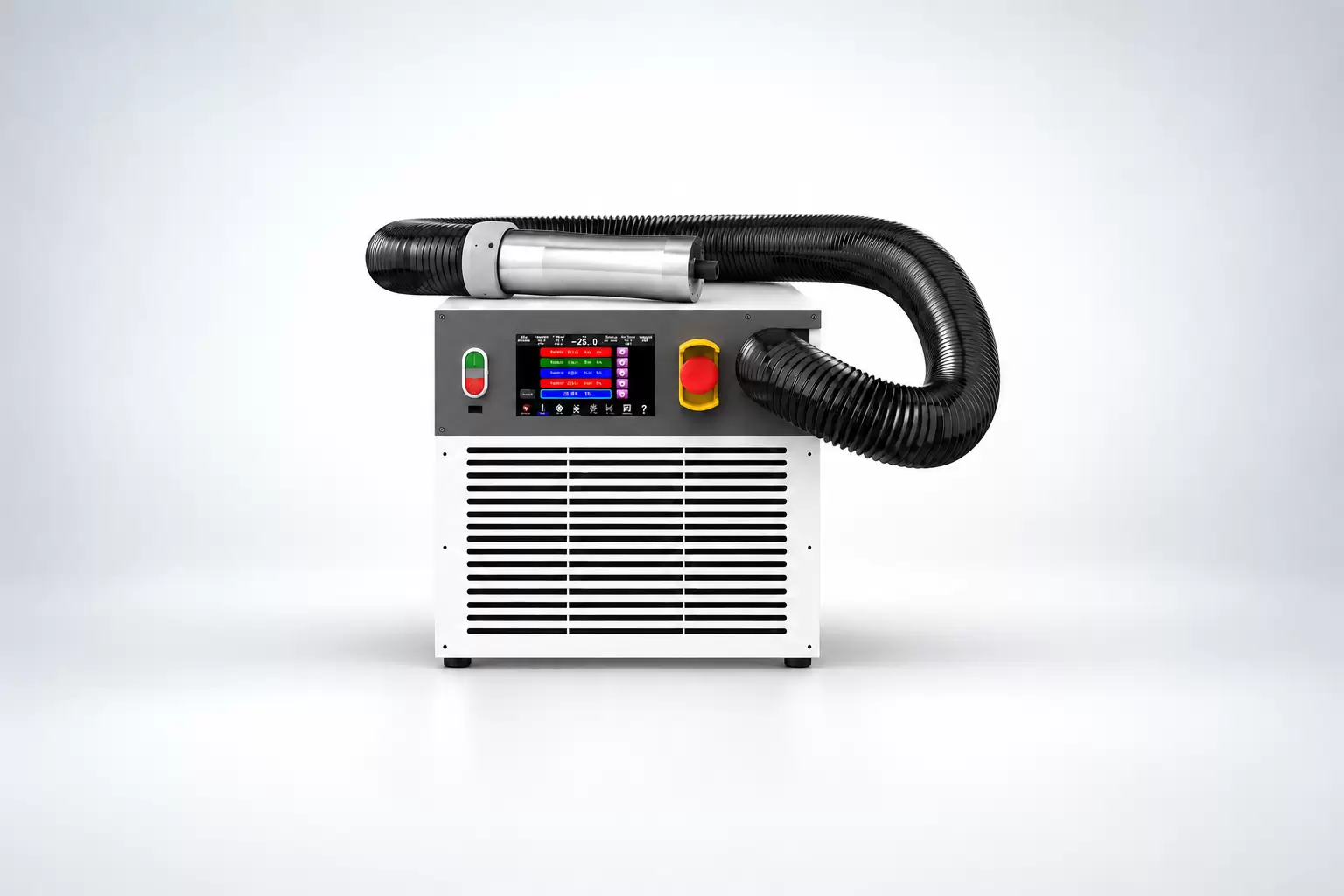

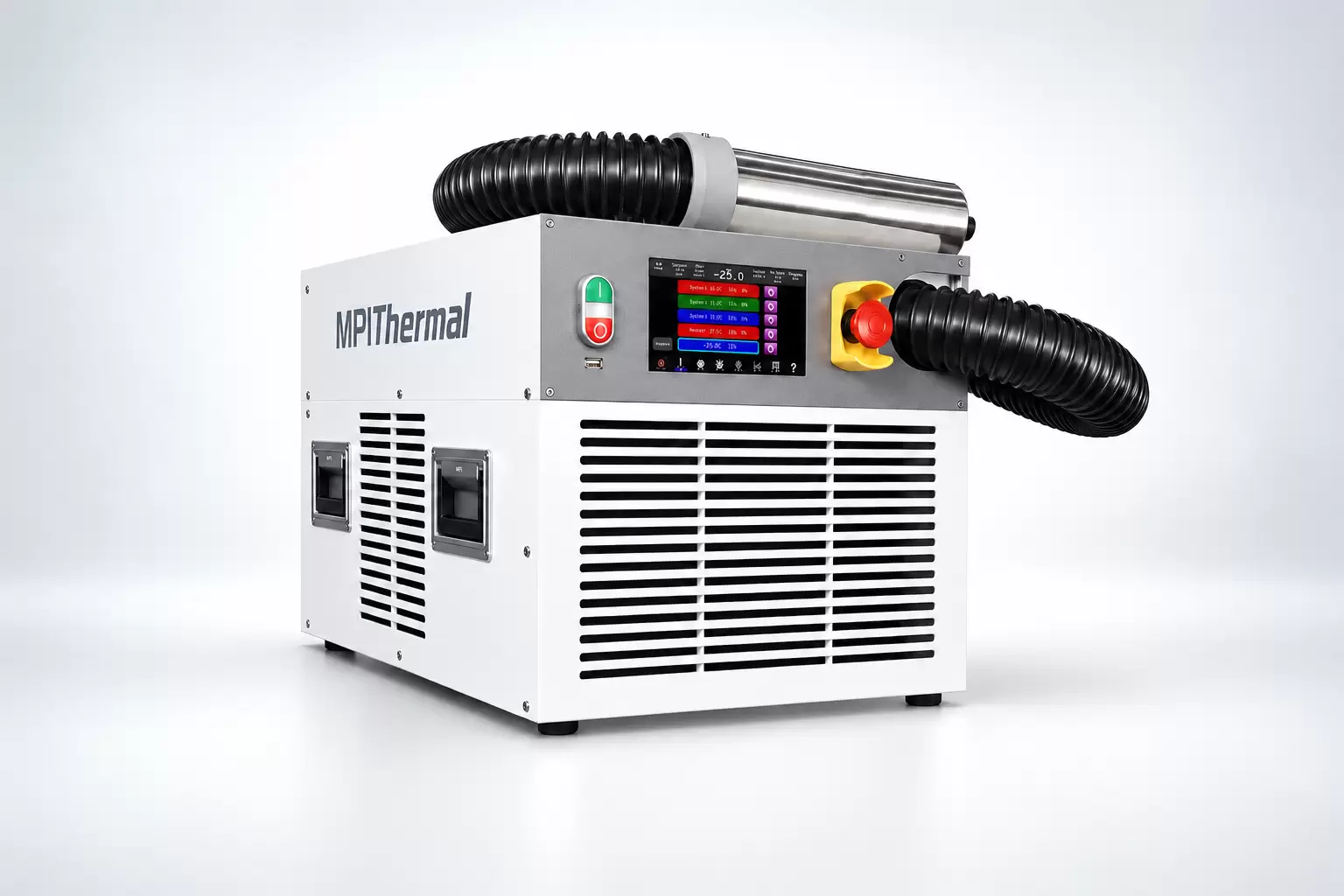

The TA-1000 provides temperatures from -25°C to +200°C ThermalAir Desktop System

MPI ThermalAir TA-1000 gives the user full temperature control and portability. The system includes full GUI touch screen display, remote user interface rear panel, front output gas hose and microscope style Thermal Head and Hose arm and stand.

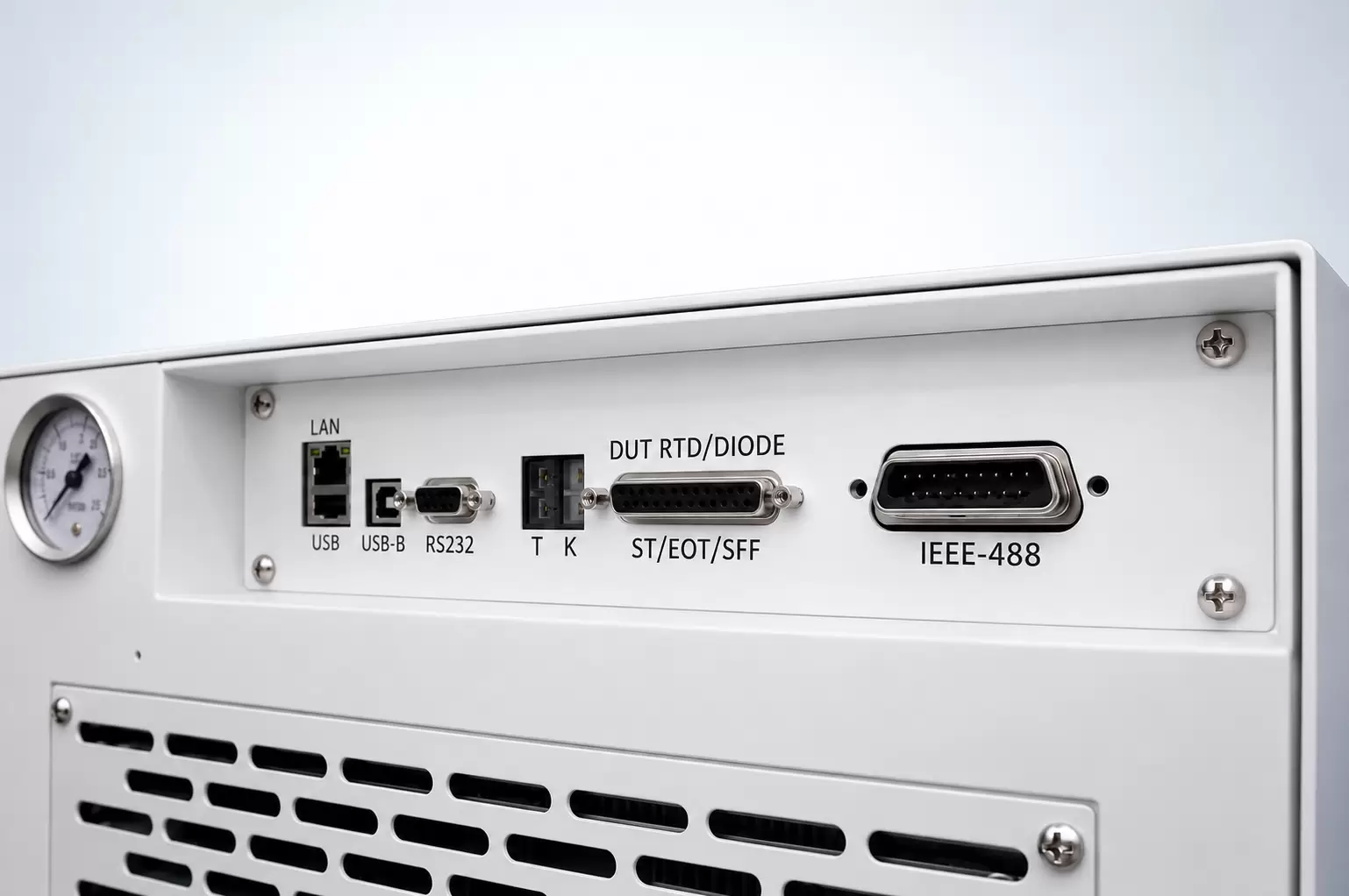

T-Type and K-Type Thermocouple DUT temperature control sensor inputs on the rear panel.

Basic system includes all you need to meet your temperature testing requirements.

TA-1000 Remote Interface

– IEEE-488.2(GPIB)
– RS-232 Serial
– USB
– Ethernet : LAN/LXI
– LabVIEW drivers

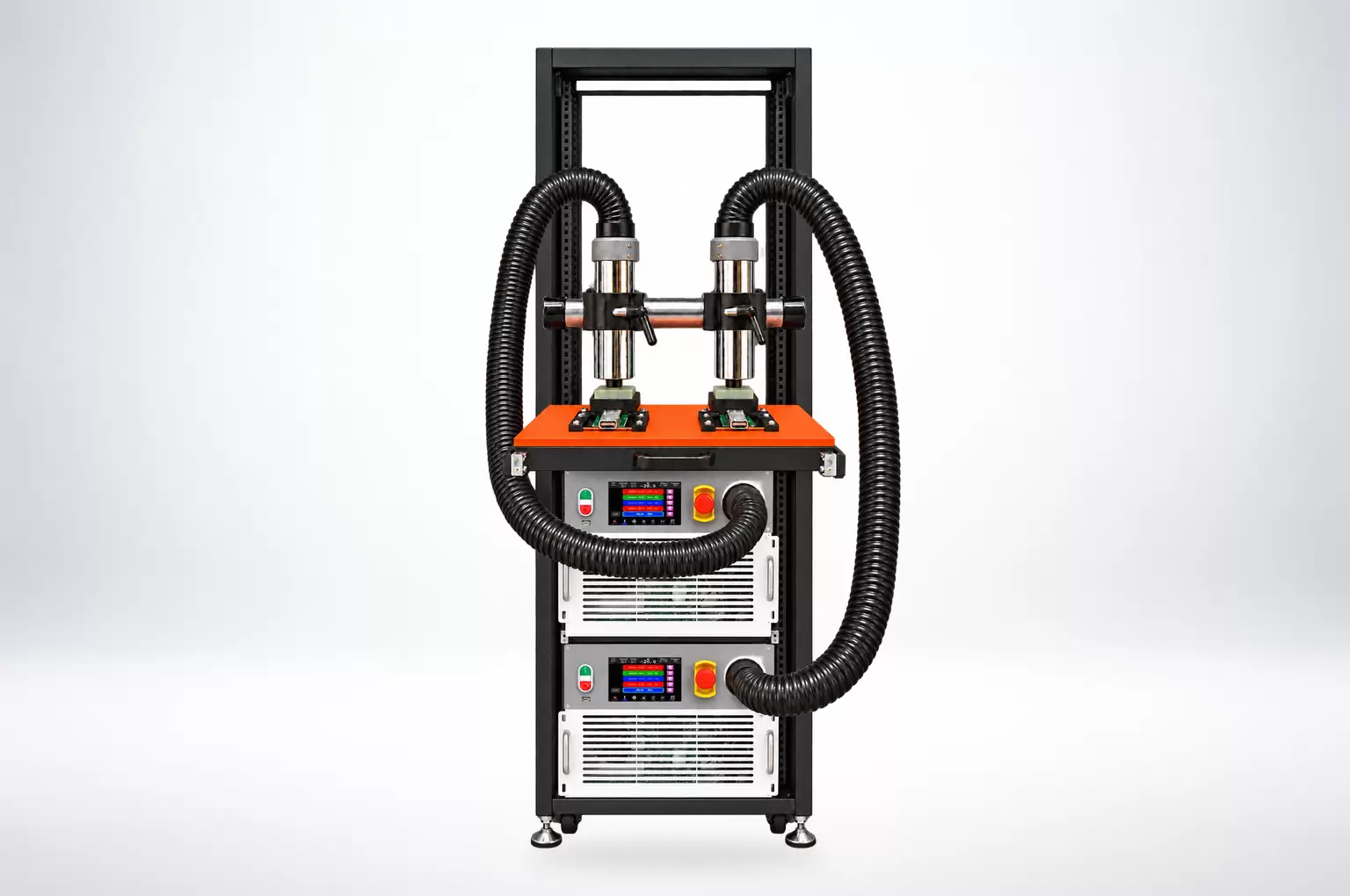

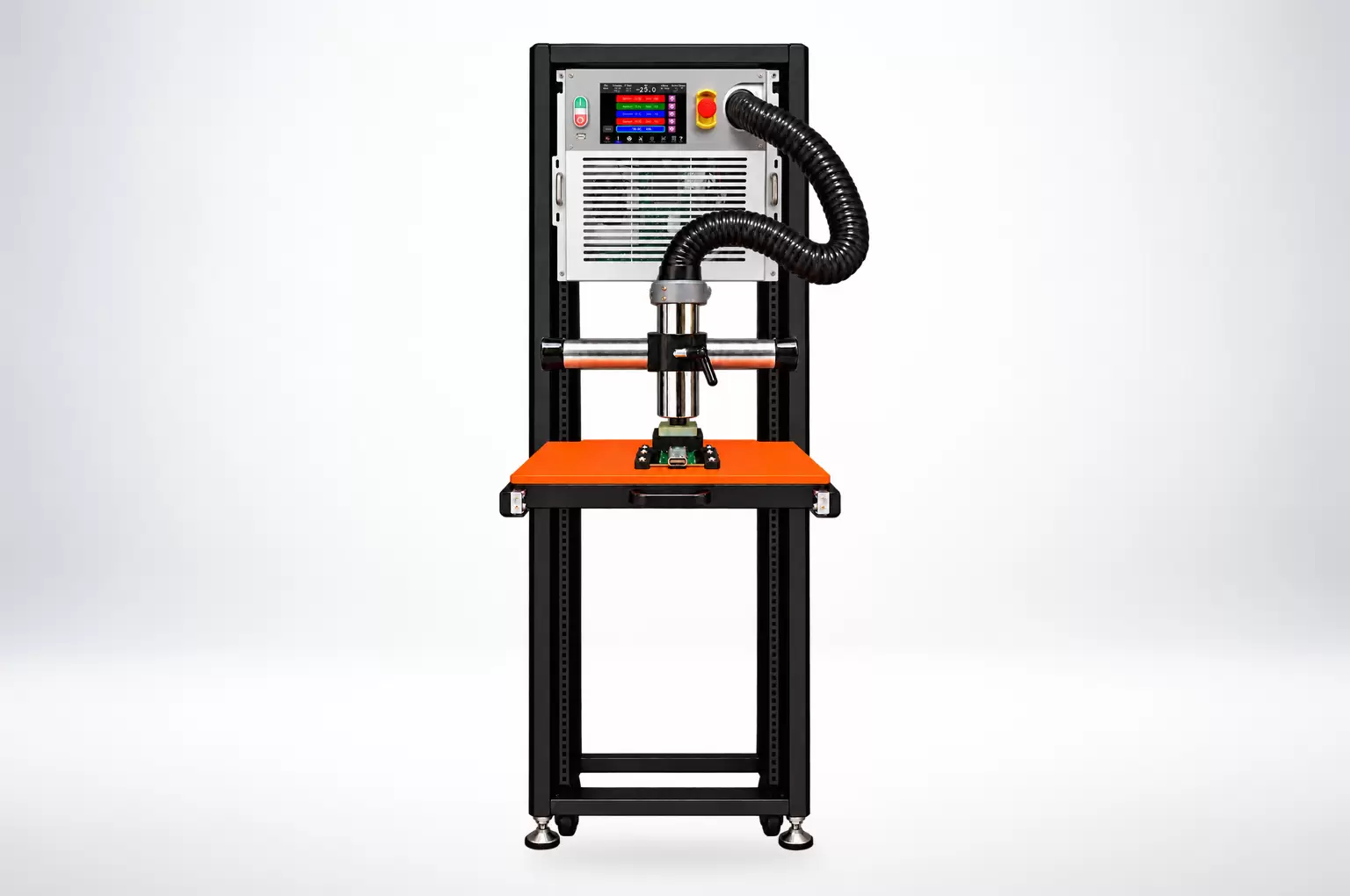

19 inch rack mount system configuration Available

Temperature Testing Systems | Thermal Cycling Test Systems  | Environmental Testing Systems | Temperature Simulation Testing | Thermal Test Equipment | Thermal Cycling Test Equipemnt

Microscope Style Integraded Arm & Stand
Plus Glass Cap Accessories

The flexible Microscope Style Arm & Stand can be use mounted to the TA-1000B or it can used separately.

The TA-1000B Arm & Stand holsters the systems thermal head and thermal glass cap

The system has a high temperature 3.28 inch I.D double pane  glass cap enclosure

The TA-1000B includes a rear 6 ft. output flex hose

Two User Control Modes – Standard Operator & Temperature Cycle
(Temp Cycle, Ramp & Soak)

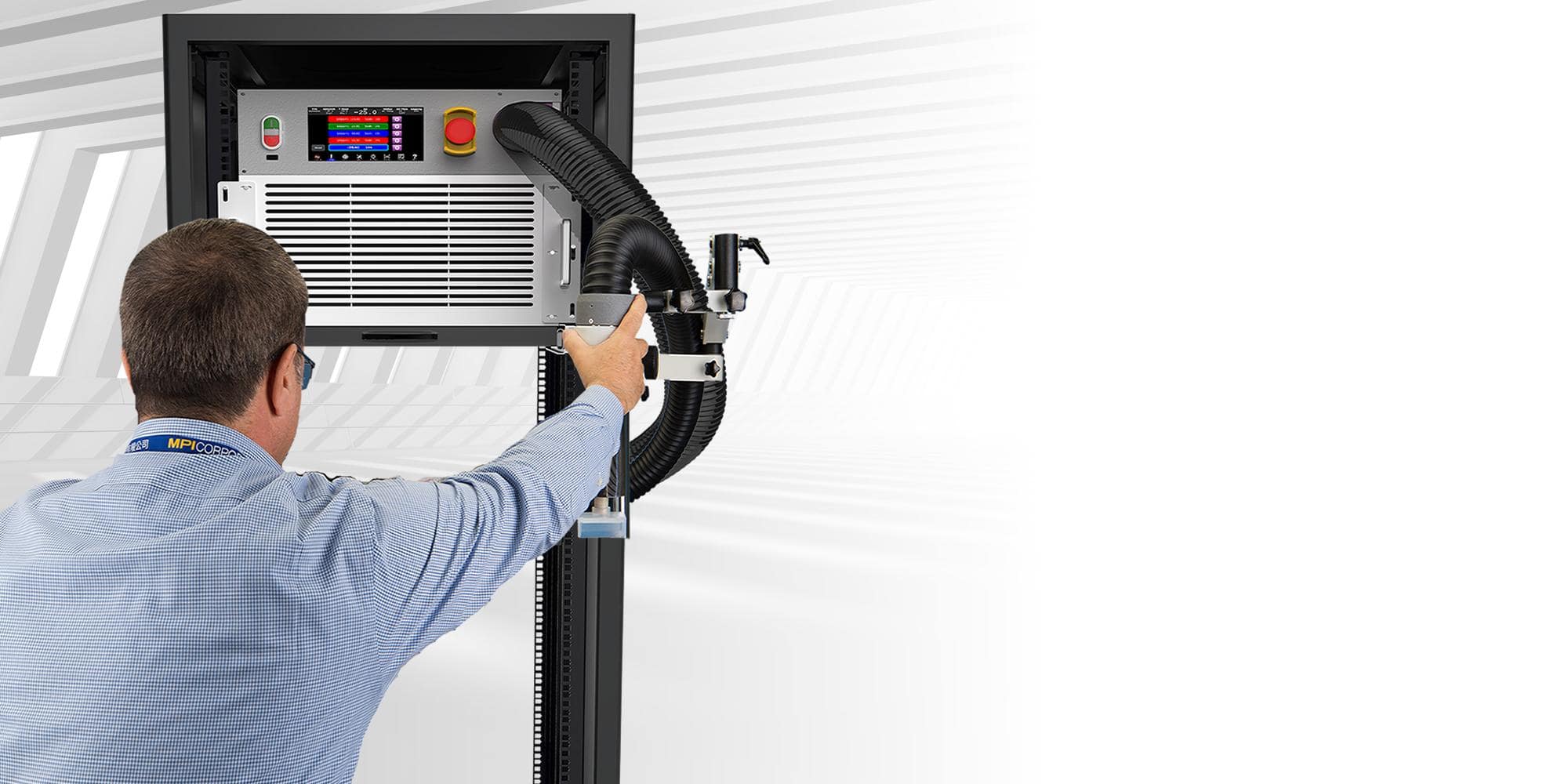

The Microscope Style Arm & Stand positioning is versatile and is manually adjusted to accommodate most test setups

Download the Datasheets

Temperature Forcing Systems | Thermal Test Systems  | Environmental Test Chambers | Temperature Cycling Test | Thermal Test Equipment | Thermal Shock

ThermalAir Color Touch Screen GUI

6 Users Friendly Easy Icons

  • MAIN  Users Defined Preset Temperature Settings
  • CYCLE  Hot/Cold Temperature Cycle User Profiles
  • SETUP Save/Load Temperature Parameters
  • UTILITIES Configuration, Calibration & Diagnostics
  • REVIEW Real-time & History  – Full Temperature Graphs
  • DATALOG  Chart Time & Temperature to USB

ThermalAir TA-1000B Dimensions & Working Height

Thermal Stream Dimensions

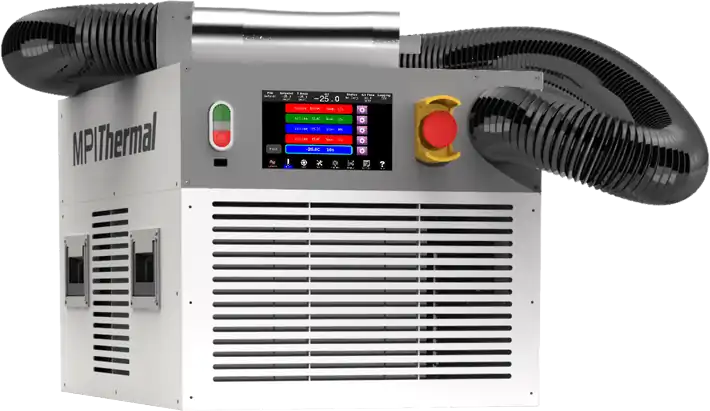

TA-1000A Small Temperature Cycling Test System

ThermalAIr TA-1000B Microscope Style Arm & Stand can be easily integraded to the top of base unit and a 330mm(13.0″) x 330mm (13.0″) base plate is included for standalone operation

Temperature Simulation Testing

MPI Thermal temperature inducing equipment is portable and can easily be moved from one test station to another. Product engineers and manufacturers can use our ThermalAir TA-1000 system to quickly bring their parts to temperature right at the test location.

Temperature cycling, thermal profiling and other environmental temperature conditioning is why MPI Thermal systems are part of the manufacturing temperature test processes.

MPI Thermal TA-Series of thermal air steam temperature forcing systems provide a wide variety of hot and cold temperatures in order to simulate at the point of test.
