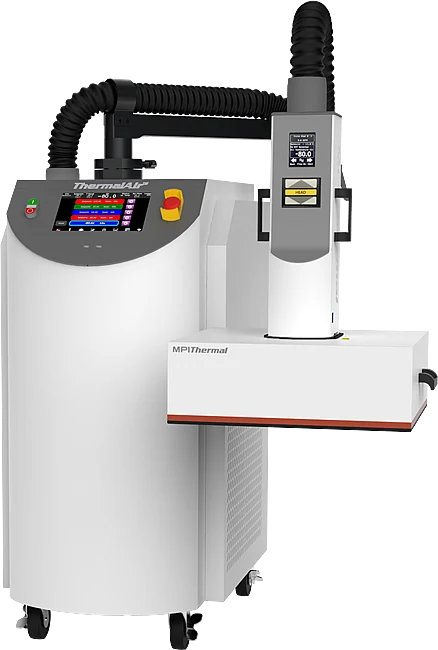

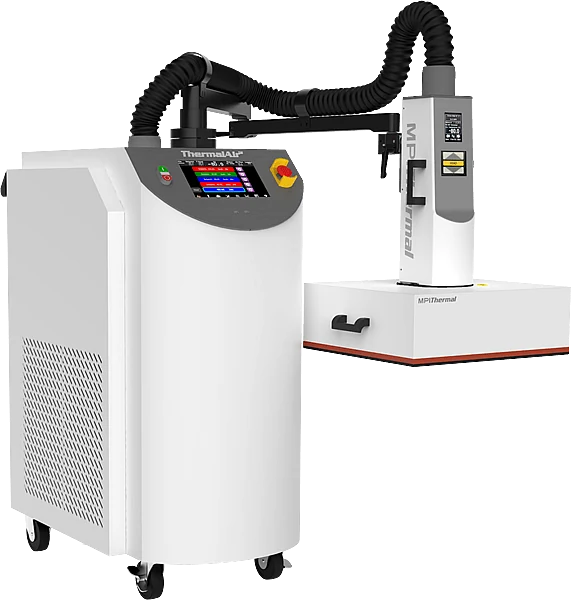

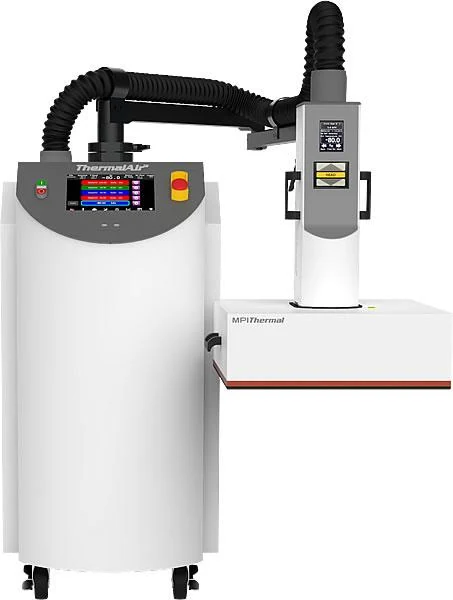

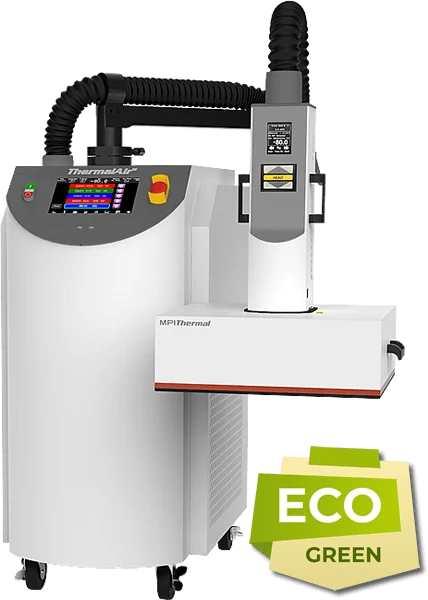

TA-5000A with Hood Style Compact Chamber
The ThermalAir TA-5000A Hood Compact Chamber Accessory is use in many temperature test solutions. The compact hood chamber easily connects to the TA-5000A thermal head ( no tools required). Manufacturers and product engineers test their components to assure their integrated circuit and other parts will work at temperatures from -60°C to +200°C and beyond.
An Evolution in Localized Temperature Testing Equipment
-80°C to +225°C
Thermal Test Enclosure – TSmall Test Chamber – Thermal Shock Chamber – Small Temperature Chamber – Benchtop Test Chambers
Thermal Test Enclosure
TA-5000A with Hood
-80°C to +225°C
ThermalAir Compact Chamber Hood is for temperature test for all types of components such as Automotive Sensors, Fiber Optic Components, Microwave Hybrids, MCM, PCB, or type Electronic Components / Non-Electronic parts.
The ThermalAir TA-5000A brings precise thermal capabilities directly to your test application, exactly localizing to where temperature testing is required.

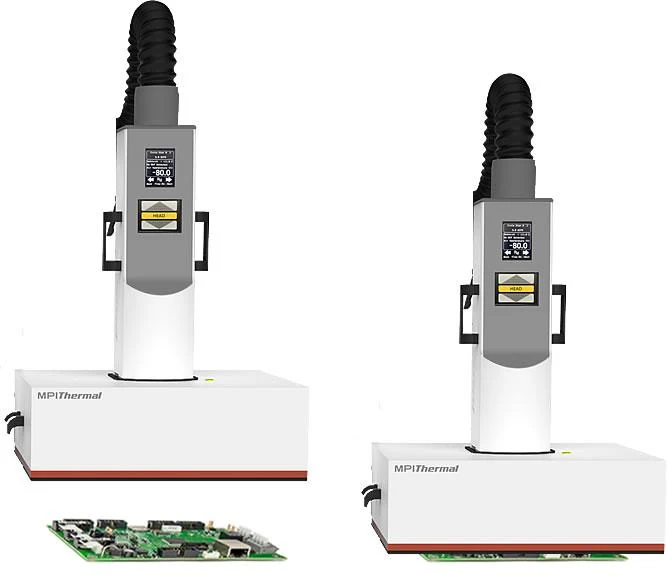

ThermalAir TA-5000A Compact Hood Chamber is a thermal test enclosure that can be raised and lowered down over electronic components under test for quick and easy loading / unloading parts that need temperature test and thermal conditioning. Temperature test and cycle your electronic / non-electronic parts and other devices at temperatures from -60° to +200°C with a temperature accuracy and uniformity, unmatched by large environmental chambers.
Download the Datasheets
Thermal Shock Chamber – Test Chamber – Temperature Cycling Chamber – Small Temperature Cycling Chamber – Small Test Chamber
- No LN2 or CO2 Required
- Interchangeable Compact Chamber Sizes
- Feed-Thru for Connecting Test Cables, Plugs, and Connectors to Device Under Test
- Fast Ramp Rates & Temperature Transition Times (User Controlled)
- Additional Internal Temperature Probe (Location Defined by User Placement)
Download the Datasheets
Thermal Test Chamber – Benchtop Test Chambers – Thermal Test Chamber – Benchtop Test Chambers – Benchtop Test Chambers
-80°C to +225°C
The ThermalAir TA-5000A systems with the Hood Style temperature test enclosure provides heating and cooling for all types of materials. MPI’s thermal test enclosures & chambers are ideal for thermal testing and cycling various temperature ranges on parts and electronic components.
ThermalAir TA-5000A small temperature chamber meets the mil-spec temperature range of -55°C to +125°C (actual test range -80°C to +225°C). Fast temperature ramp rates for thermal cycling test in just seconds.
Download the Datasheets
Download the Datasheets
Performance
Temperature Change Rate (in seconds)
Ambient to +125°C < 3 minutes
+125°C to Ambient < 2 minutes
Ambient to -40°C < 3 minutes
-40°C to Ambient < 1 minute
Uniformity 2.0°C range from setpoint
1) For Optimal performance, use Compact Chamber closests in size to the UUT.
2) Performance is is measured on Compact Chamber using TA-5000A at 18cfm air flow rate.
ThermalAir TA-5000A Accessories
High Temperature Glass Chambers
Rectangular & Square Thermal Glass Cap Chambers
Conductive & Non-Conductive
High Temperature Shroud kit
Compact Chamber Clamshell Model
Flex Extender Air Transfer Hose
2Ft., 4Ft., 5Ft., 6Ft. Length
(Custom lengths available)
Compact Chamber Hood Model
