Thermal Compact Environmental Test Chamber
The ThermalAir TA-5000 systems provide temperature directly to the test application. The Clamshell Style compact test chamber in standard and custom dimensions for many size devices and components in Aerospace, Semiconductor, RF Microwave, Automotive electronic, Fiber Optic and other Test Articles.
Our new thermal test technology gives the end user the ability to easily test while controlling the ramp rate speed with one-touch temperature set point functions.
An Evolution in Environmental Test Cycling Chambers
-60°C to +200°C
Temperature Test at the Workstation
Electronics and Electromechanical components continue to infiltrate all aspects of commercial and industrial use. Temperature test of these devices, components and parts in manufacturing for consumer or industrial markets are required to assure quality and reliability.
Military Defense to Consumer Electronics to Transportation to Cloud Computing Data Centers demand safety, performance, and reliability continues to grow. These components require temperature conditioning and fast temperature cycling at ranges from as cold as -100C to +300C and beyond.
MPI Thermal localized temperature inducing test equipment brings temperature to your test. MPI thermal systems are portable and can easily be moved from one test station to another. Temperature cycling, thermal profiling and other environmental temperature conditioning is why MPI Thermal systems are part of the manufacturing temperature test processes.
Benchtop Environmental Test Chambers
The MPI ThermalAir Temperature Cycling Systems and Thermal Test Chambers are Adaptable.
Download the Datasheets
Temperature Cycling Chamber – Temperature Cycling Test – Temperature Chambers – Thermal Test Systems – Battery Test Chambers

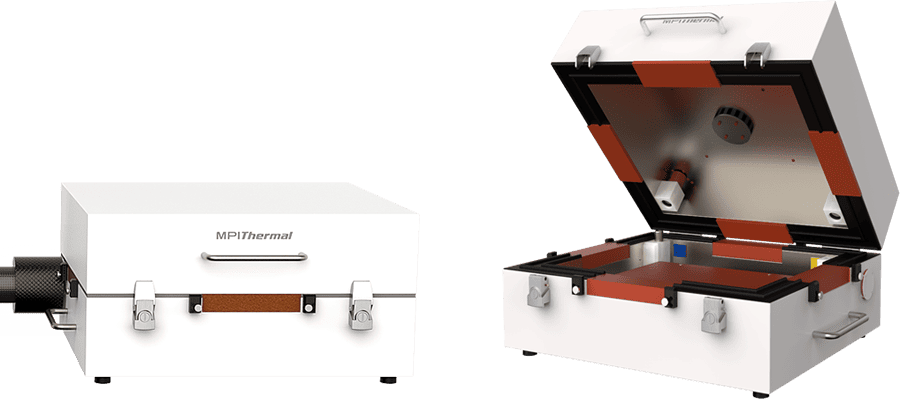

The Clamshell Compact Test Chamber can be open and closed for quick and easy loading/unloading of your parts that need temperature testing and thermal conditioning. Temperature test your electronic/non-electronic parts and other devices at temperatures from -60°C to +200°C with temperature accuracy and uniformity unmatched by large environmental chambers.
- No LN2 or CO2
- Interchangeable Chamber Sizes
- Feed-Thru for connecting Wire & Test Cables to your DUT / UUT
- User controlled Ramp Rates & Dwell Times
- Frost Free Operation
- Additional Internal Temperature Probe
Download the Datasheets

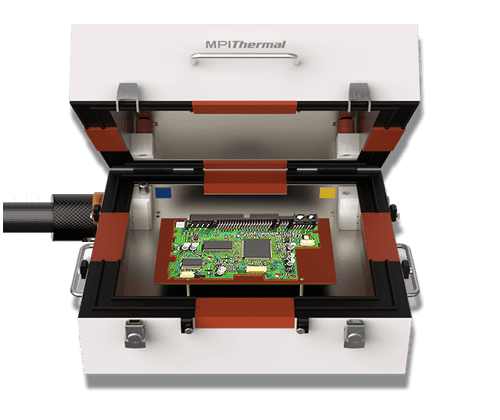

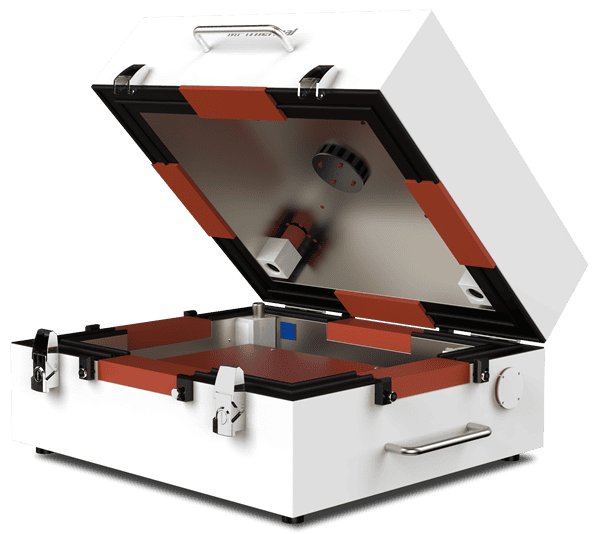

Clamshell Temperature Controlled Chamber – Opens and Closes Easily
-60°C to +200°C
Thermal Test Chambers – Battery Test Chambers – Test Chambers – Battery Test Chambers – Chamber Test
Control the Ramp Rate Transition Times
ThermalAir temperature cycling test chamber easily exceeds the mil-spec temperature range of -55°C to +125°C (actual test range -80°C to +225°C). Fast temperature cycling test in just minutes.
The DC chiller and DC Heater patented technology runs at full temperature performance at any power frequency, 200VAC to 250VAC users facility with 50% greater energy efficiency.
Download the Datasheets
Performance
Temperature Change Rate (in minutes)
Ambient to +125°C < 8 minutes
+125°C to Ambient < 8 minutes
-40°C to Ambient < 3 minute
Ambient to -40°C < 11 minutes
Uniformity 2.0°C range from setpoint
*Temperature Performance is dependent on output air flow of TA-5000A/B

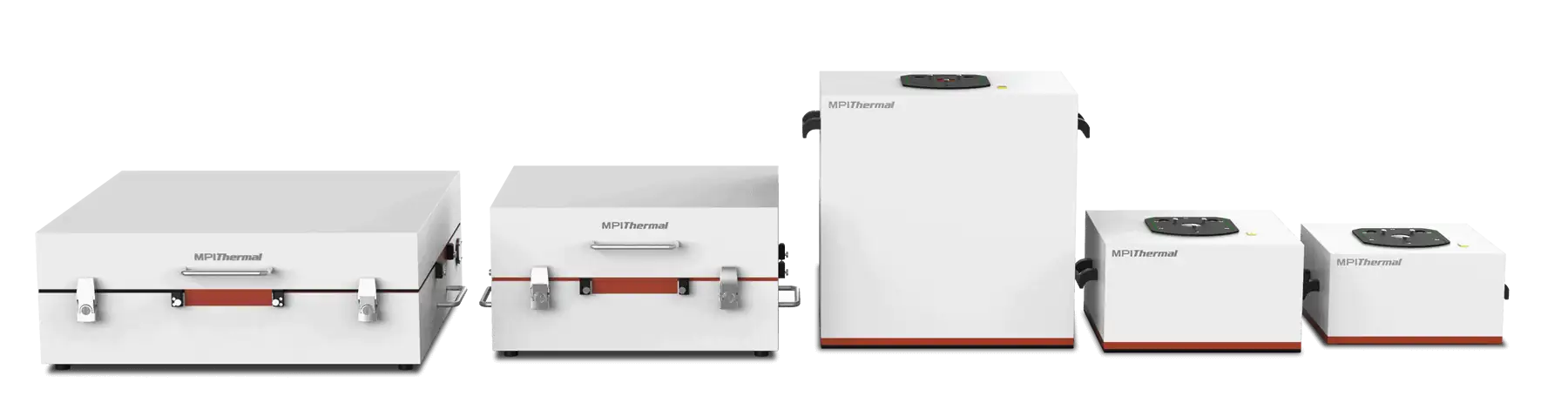

ThermalAir Custom Test Chambers Sizes Available
The ThermalAir series of temperature testing and thermal cycling test systems and their accessories can be customized for your applications, optimizing your production environment’s inline testing. MPI Thermal’s temperature test systems are highly adaptable, capable of accommodating a wide range of sizes and configurations for devices and components. Understanding these subtleties helps in choosing a system that matches your particular testing scenario, offering a comprehensive solution for all your testing requirements.
The TA-5000A and TA-3000A series can also be used with the Thermal Hood Test Enclosure.
Be sure to ask a representive about Custom Size Test Chambers.
Customize Your Temperature Testing Application
ThermalAir Test Chambers
Gaining a comprehensive understanding of the various temperature test systems, including MPI Thermal Air Stream systems, MPI Thermal Test Chambers, and air chillers, is fundamental for setting up an accurate, efficient, and customized thermal testing process.
MPI Thermal’s Temperature Testing Solutions and Test Chambers are re-usable for other test applications and not designed for a single test scenario, as many test chambers are. The driving temperature technology is in the TA-5000 and TA-3000 series test systems. Not only does MPI Thermal’s solutions provide rapid temperature cycling allowing you to control ramp rate, soak, and cycle, but also brings the power of large walk-in chambers to to small device test scenarios from -80°C to +225°C.
Customize Your Temperature Testing Application

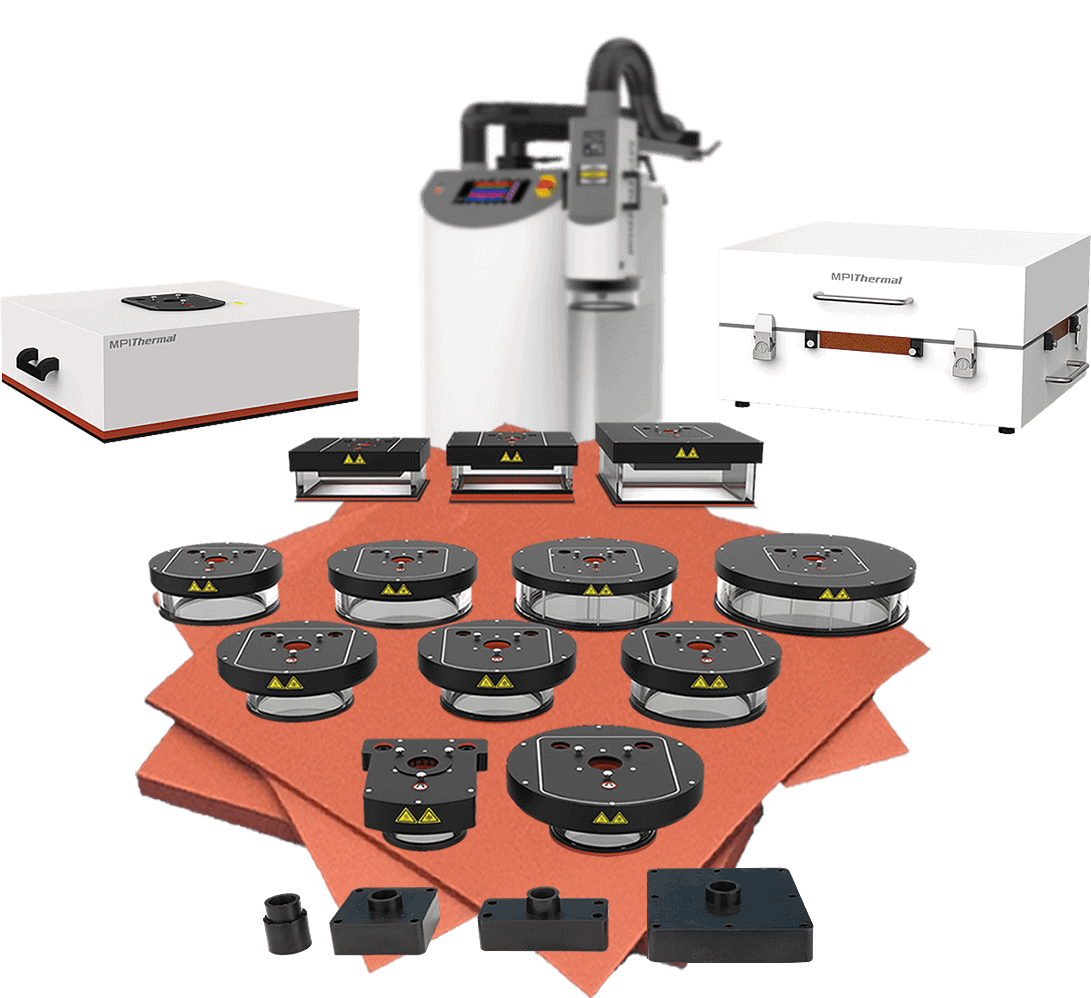

ThermalAir Test Chambers & Accessories
The ThermalAir series of temperature testing and thermal cycling test systems have a wide range of accessories that are attached to the ThermalAir Stream Arm and Flex Hose located at the end of Thermal Head output gas nozzles.
They incorporate an intuitive full funtion for the ThermalAir users with the flexibility to accurately test in a variety of ways at the thermal test workstation.
The TA-5000A and TA-3000A series can also be used with an Thermal End Effector adaptors interfaced to the end of Thermal Head Arm and Stand, designed to adapt to the end users device under test. The exact use of this device depends on the users thermal test application.
