ThermalAir TA-3000B

ThermalAir Series Temperature Forcing System

The ThermalAir TA-3000B high capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperature from -65°C to +225°C. Compact! Plus Performance!

An Evolution in Temperature Testing

Thermal Cycle Test System

Unique architecture of the ThermalAir TA-3000B creates unprecedented performance while saving up to 50% on electricity/energy/power!

Unique architecture of the ThermalAir TA-3000B creates unprecedented performance while saving up to 50% on electricity/energy/power!

    • Extremely low audible noise refrigeration built-in DC chiller for engineering lab environment
    • Active temperature control and settable ramp rates for temperature profiling, cycling, thermal shock and testing directly at application on the bench top and production floor
    • Flex Extender Air Transfer Hose available in 2 to 6 ft. lengths provides maximum flexibility and reach, in the lab, on the benchtop, or in the production line. [No hardware or tools required]

Thermal Test Cycling Solutions

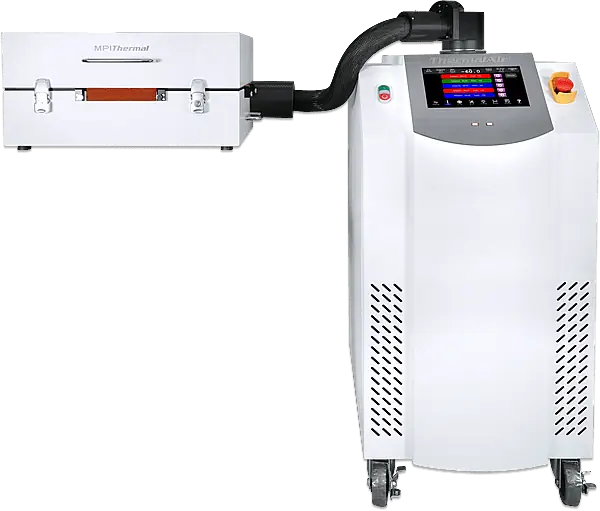

Temperature Test Chamber | Thermal Ramping Temperature Test

Compatible with MPI Thermal ClamShell Test Chamber

Temperature Air Forcing Systems | Thermal Test Systems  | Thermal Range Testing Equipment |  Thermal Cycle Test | Fast Thermal Test | Fast Temperature Cycling

ThermalAir TA-3000B Specifications

Thermal Stream Dimensions

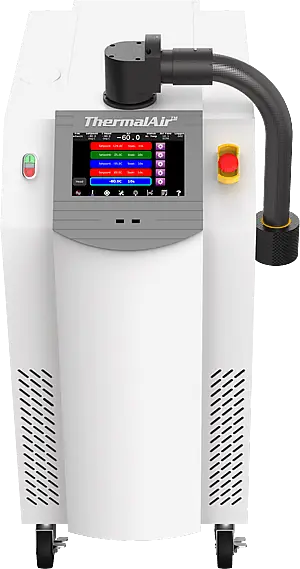

Thermal Stream

Temperature Air Forcing Systems | Thermal Test Systems  | Thermal Range Testing Equipment |  Thermal Cycle Test | Fast Thermal Test | Fast Temperature Cycling

Full interface for all communication control requirements

3 USB-Type A, 1 USB-Type B, IEEE-488, LAN, RS-232, T-Type, K-Type and RTD temperature sensors PLUS Auto Start Test & End of Test for automatic temperature cycling
Hot-Cold-Amb.

All these are made for simple control and serviceability.

Download the Datasheets

previous arrow
next arrow
Slider

ThermalAir Color Touch Screen GUI

6 Users Friendly Easy Icons

  • MAIN  Users Defined Preset Temperature Settings
  • CYCLE  Hot/Cold Temperature Cycle User Profiles
  • SETUP Save/Load Temperature Parameters
  • UTILITIES Configuration, Calibration & Diagnostics
  • REVIEW Real-time & History  – Full Temperature Graphs
  • DATALOG  Chart Time & Temperature to USB

Performance Plus! – Productivity!

• Temperature Range -65°C to +225°C
• Flow Rates 4-16 SCFM
• -40°C to +125°C / +125°C to -40°C in less than 10 sec
• Ultra Stable DC Temperature Control
• Frost Free Operation/ Built-in Air Dryer
• No LN2 or CO2 Required
• CFC Free/ CE Mark

Flexibility

• Built-in color touch screen display GUI
• USB & SSD Thermal file management & data logging
• Easy roll around wheels for portability
• Plug-in anywhere 200 to 250VAC, 50/60Hz
[ No configuration required ]

An Evolution in Temperature Testing

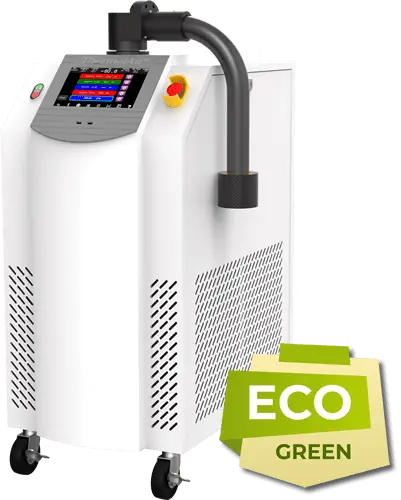

  • Eco-Friendly with up to 50% power energy savings
  • Ultra-stable DC temperature control with Smart DC Energy efficient chiller
  • Built-in color touch screen display GUI. The front panel touch display easyicons makes for convenient user operation and intuitive user friendly menus
  • No voltage or frequency configuration needed- one system worldwide
  • Quiet low audible noise for engineering laboratory
  • No LN2 or CO2 required [ Built in Chiller & Air Dryer ]

Compact! Plus Performance!



ThermalAir TA-3000A Temperature Cycling Test System

Click to Enlarge

Temperature Test Chambers

The TA-5000B ThermalAir stream system is be used with a Thermal Glass Cap Enclosures interfaced to the end of Thermal Head, Arm, and Stand, designed to adapt with the end users device under test. The exact use of this adapter depends on the users thermal test application. Our thermal glass caps and thermal accessories are used in accordance with test device and of PCB size, dimension, and how and where the test broad is populated with other components. We have a wide variety of sizes to fit your test.

Temperature Conditioning System

Full lnline Interface for all communication control Requirements

3 USB-Type A, 1 USB-Type B, IEEE-488, LAN, RS-232, T-Type, K-Type and RTD temperature sensors PLUS Auto Start Test & End of Test for automatic temperature cycling Hot-Cold-Amb.


All these are made for simple control and serviceability.



Click to Enlarge

ThermalAir Color Touch Screen GUI

  • MAIN  Users Defined Preset Temperature Settings
  • CYCLE  Hot/Cold Temperature Cycle User Profiles
  • SETUP Save/Load Temperature Parameters
  • UTILITIES Configuration, Calibration & Diagnostics
  • REVIEW Real-time & History  – Full Temperature Graphs
  • DATALOG  Chart Time & Temperature to USB
