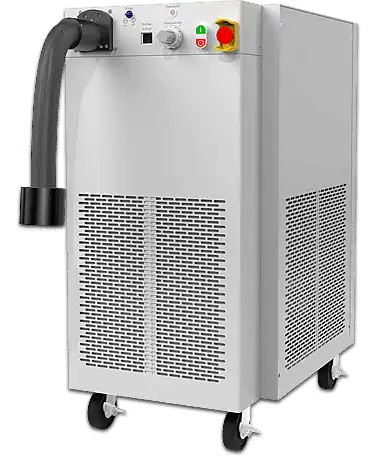

ThermalAir TC-100 Air Conditioned Chiller

The MPI ThermalAir TC-100 is a high capacity thermal air chilling system used for localized ambient temperature testing by providing continuous -80 Clean Dry Air at the output with a flow of up to 24 SCFM.



MPI ThermalAir TC-100 Air Conditioned Chiller provides a direct stream of continuous clean dry cold air directly to the area that needs to be temperature test. Environmental stress screening, temperature conditioning, thermal shock and other temperature test requirements is what the ThermalAir temperature systems bring to the test.

Cold Temperature Forcing Systems – Ambient Test Systems – Cold Air Forcing – Temperature Cycling Test – Cold Temperature Cycling

ThermalAir TC-100 Air Chiller

The MPI ThermalAir TC-100 high capacity thermal air process chiller system is used for cold temperature testing and localized temperature inducing of continuous -80°C Clean Dry Air.

An Alternative to LN2 and or CO2 in many applications

  • Built-in Air Drying System
  • Energy Efficient Ultra-stable DC Chiller
  • RS-232 Remote On/Off Power & Output Flow
  • One-Touch On/Off Flow Button
  • No LN2 or CO2 Required
  • Plug-in Anywhere Worldwide
  • No Configuration Needed

Download the Datasheets

Performance Plus! One System Worldwide!

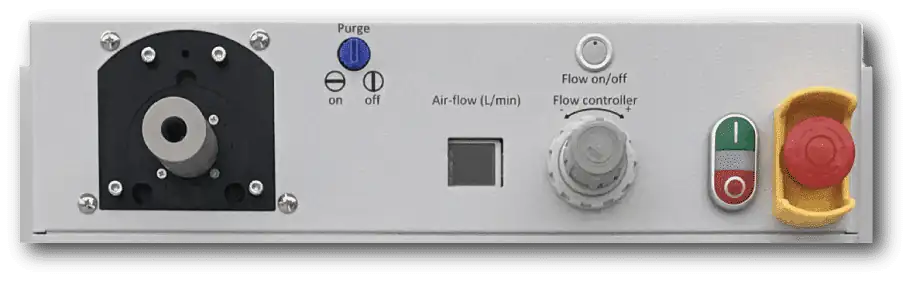

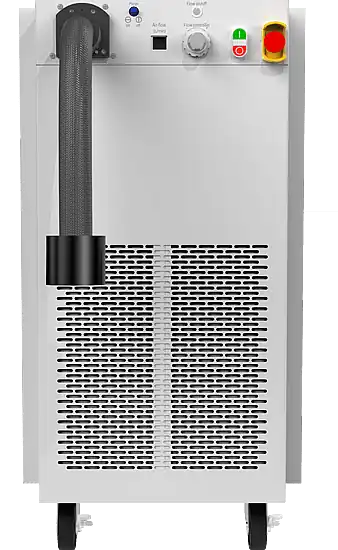

ThermalAir TC-100 Air Conditioned Front Panel & Flex Cold Air Transfer Hose

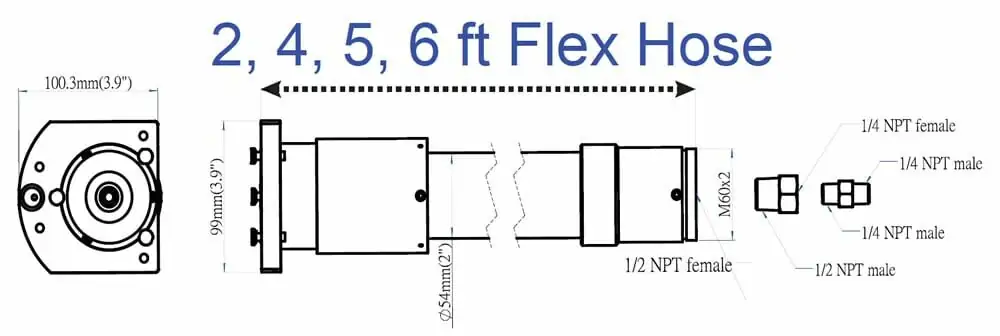

Thermal Stream Dimensions
Thermal Stream

Front panel user interface includes:

  • Purge Air On/Off Switch
  • Main Air Flow On/Off Button
  • Air Output Flow Regulator (4-27 SCFM)
  • Power On/Off Switch
  • LED Air Flow Rate Display.

Download the Datasheets

​ Ambient Temperature Cycling – Cold Testing – Cold Air temperature Inducing – Temperature Cycling Test – Ambient Temperature Test

ThermalAir TC-100 Air Chiller Rear Panel & Flex Air Transfer Hose

Front panel user interface includes:

  • Purge Air On/Off Switch
  • Main Air Flow On/Off Button
  • Air Output Flow Regulator (4-27 SCFM)
  • Power On/Off Switch
  • LED Air Flow Rate Display.
Thermal Stream
Thermal Stream Dimensions
