ThermalAir TA-5000 Series of Temperature Test Systems
Temperature Conditioning System
Instead of taking your test parts that need temperature conditioning to a large oven or large environmental test chamber, our thermal test system allows you to perform your temperature profiling right where you need it – at your test bench, on your production floor or in your test laboratory.

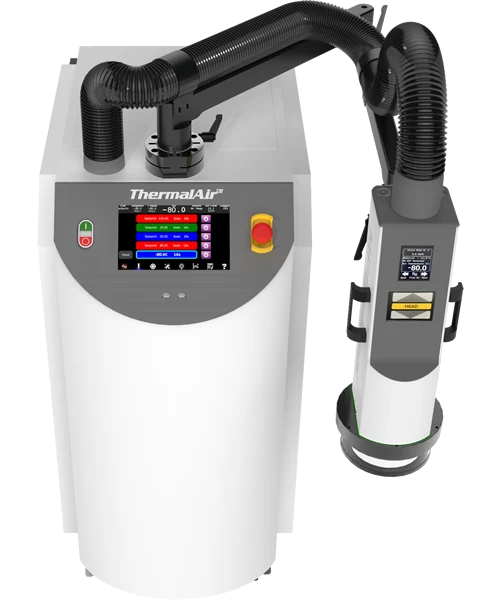

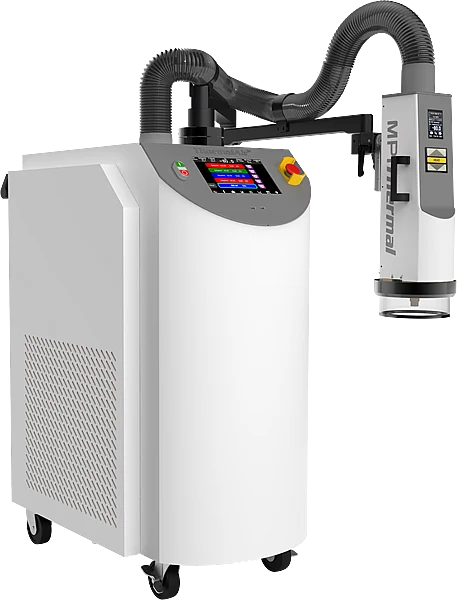

The ThermalAir TA-5000A is a compact, portable bench top environmental heating and cooling temperature forcing air stream system.
Download the Datasheets
Thermal Test – Environmental Test Chambers – Temperature Testing Chamber – Thermal Test Systems – ESS Test Chamber
Some Applications:
Â
-
Failure Analysis Testing
-
Hot/Cold Temperature Cycle Testing
-
MIL-SPEC-883 Test Methods
-
Product Engineering
-
Semiconductor Back-End Test
-
Incoming Inspection
-
IC Test Handler Verification
-
Functional Test
-
Cooling Test Article Full Cycle Â
-
Environmental Stress Screening

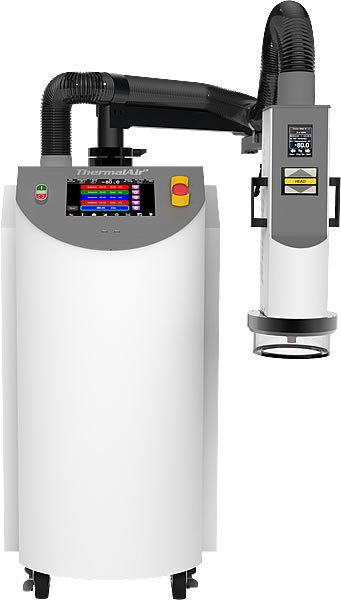

ThermalAir TA-5000A Temperature Cycling Test Systems
The ThermalAir TA-5000 series of products have a wide range of temperature test capabilities. Benchtop -60°C to +200°C applications to temperature cycling -80°C to +225°C environmental stress test. The TA-5000 series are used for temperature testing in engineering product development test labs and production test floors for semiconductor IC devices and all kinds of electronic / non-electronic components and other parts and assemblies.

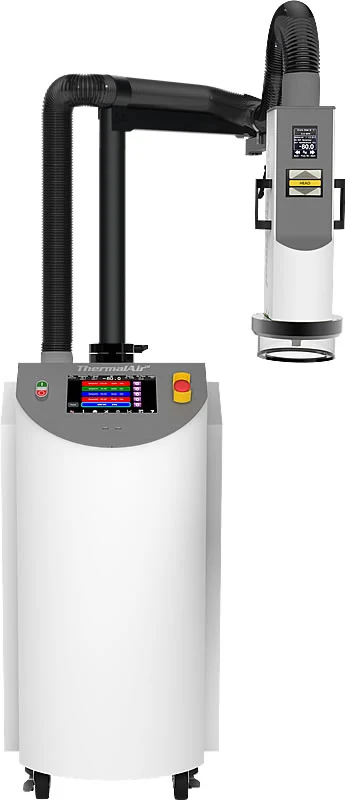

ThermalAir TA-5000AÂ Â Dimensions & Working Height
Thermal Shock –  Environmental Stress Screening – Temperature Test Chambers – Temperature Cycling Test – Thermal Shock Test

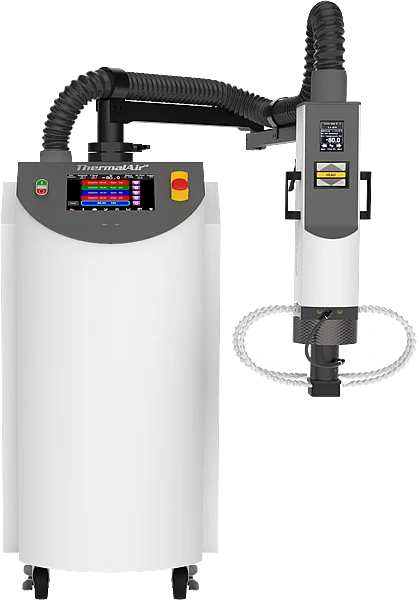

ThermalAir TA-5000A Head with Glass Chamber
Outputs a controlled clean dry thermal air stream directly on your test part
OUTPUT TEMPERATURE CONTROL
ThermalAir can control by user setting, the ramp rate, temperature transition time as fast as -55°C to +125°C in less than 10 seconds.
HOW DOES IT WORK
The TA-5000’s built-in air dryer and filtering system sends clean dry air (CDA) through its powerful internal chiller / heat exchanger to delivers hot & cold temperatures from -80°C up to +225°C.
User can control ThermalAir output temperature flow rate from 4 to 25 SCFM
(Continuous Gas Flow from -80°C to +225°C 24hrs/7days a week)! The ThermalAir temperature system is all self-contained. You just plug it in and it’s ready to start thermal testing your parts. [No configuration required].
The main temperature control of the TA-5000A is at the temperature thermocouple in the output gas nozzle. This is AIR MODE temperature control. The TA-5000A has a thermocouple imbedded in the tip of the output gas nozzle and needs no additional attached thermocouple sensors to control temperature of the ThermalAir system.
The TA-5000A has several ways to control temperature. The thermal stream system uses external thermo couples. The most common temperature thermo couple input temperature sensors the thermal stream using are T-Type & K-Type thermo couples. The MPI ThermalAir system also has multi-channel (resistance temperature detectors) RTD and Diode inputs for precise temperature control of the thermal stream system.
 Thermal Shock – Temperature Forcing Systems – Temperature Test Chamber –  Thermal Test Systems – Temperature Inducing System
Remote Interface Ports:
– IEEE-488
– RS232C
– 4 USB-Type A
– 1 USB-Type B
– Ethernet
– HDMI
– LAN/LXI
– Labview Drivers
PLUS Auto Start Test & End of Test for automatic temperature cycling Hot-Cold-Amb. All this makes for simple control and service ability.
Plug & Play Remote
No need to rewrite test programs
Compatible with Legacy Products
Download the Datasheets
Two Color Touch Screen Displays
The ThermalAir TA-5000A has a front panel display and a thermal head display. The thermal head color touch screen gives the user the ability to set temperature parameters and monitor all system operations at the test site location.
Download the Datasheets
 Thermal Test Equipment –  Environmental Test Chambers – Test Chambers –  Environmental Test Chambers – Temperature Testing Chamber

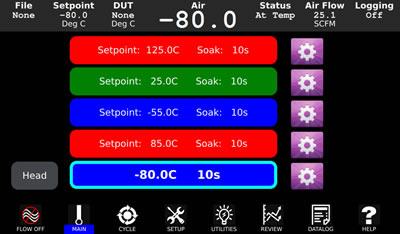

ThermalAir Color Touch Screen GUI
6 Users Friendly Easy Icons
-
MAINÂ Users Defined Preset Temperature Settings
-
CYCLEÂ Hot/Cold Temperature Cycle User Profiles
-
SETUP Save/Load Temperature Parameters
-
UTILITIES Configuration, Calibration & Diagnostics
-
REVIEW Real-time & History – Full Temperature Graphs
-
DATALOG Â Chart Time & Temperature to USB
Optional Wireless Connection
Remote Control Operation can be accomplished by VNC protocol to remotely view TA-5000 status and control. Remote from PC, laptop, mobile phone, and more. Install third party VNC Viewer App for IPhone and Android to control the ThermalAir TA-5000.
Download the Datasheets
Specification Features & Benefits
-
Ultra Cold Temperatures maintained at 50&60Hz
-
Dual Touch Screens – front panel & thermal head
-
Plug-in anywhere from 200~250VAC, 1Ø
-

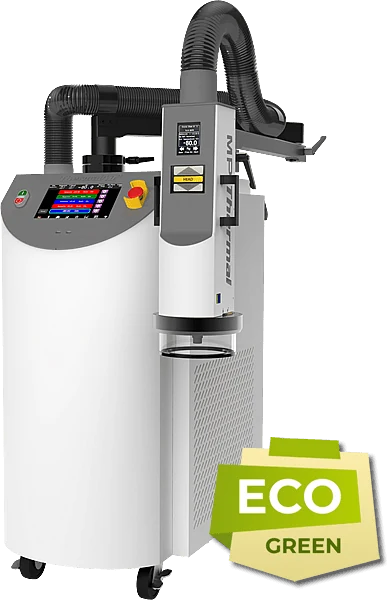

ECO smart DC system for up to 50% energy saving
-
No voltage configuration to use at different locations
-

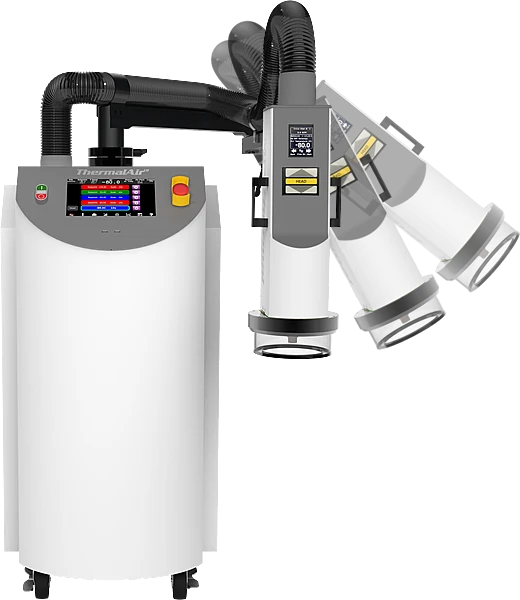

Versatile Boom & Stand – Extended reach standard
-
SSD for thermal file management and data logging
-
Control Heated dry air purge for frost free operation
-
One touch Temp Cycle, Ramp, Soak and Dwell
-
Ultra low audible noise for quiet engineering lab use
ThermalAir TA-5000A Accessories
High Temperature Glass Chamber

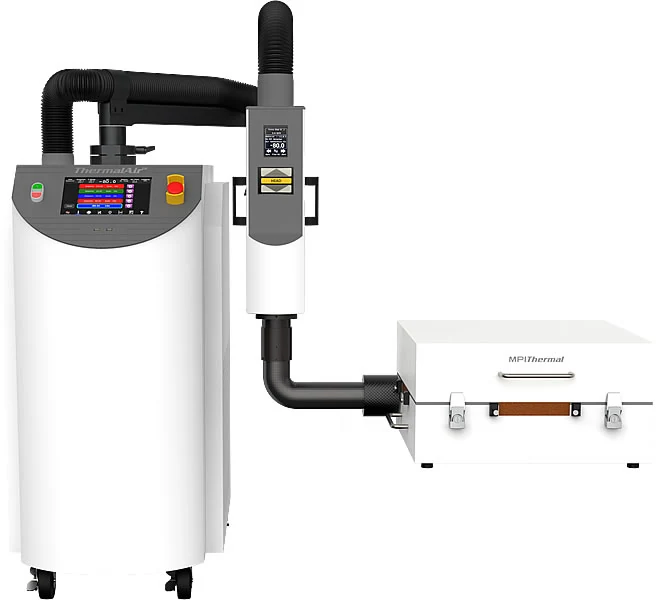

Rectangle Thermal Glass Cap Chamber
Thermal Adapter w/ Integrated Heated Purge
I-Purge Adapter

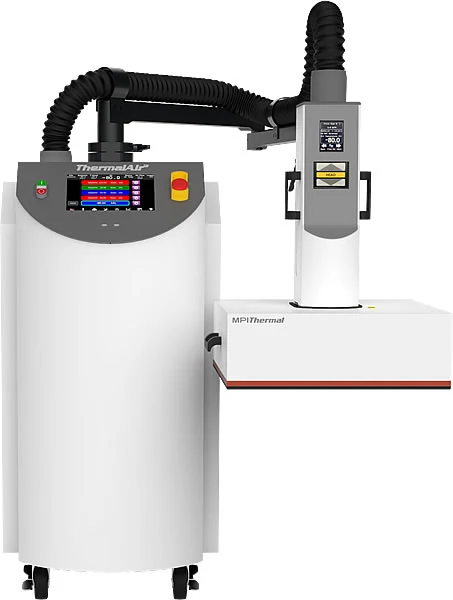

Compact Chamber Clamshell Model
