OPTIONAL External Purge Heater Module

An Evolution in Localized Temperature Testing

  • More Technology
  • More Control
  • More Innovation
  • More Solutions

Output Air Temperature is maintained at +65°C
to help eliminate frost and moisture around test
site area when going to extreme cold temperatures and not using an enclosure





Localized Temperature Testing

Features and Advantages



Standalone – Separate – External Module

  • Temperature is maintained at +65°C.
  • A pressure regulator for convenient user-operation to adjust output airflow up to 20 SCFM
  • Quiet low audible noise for engineering laboratory
  • LED Status On/Off Indicator
  • Intuitive user interface lets operator control settings manually
  • Easily attached to ThermalAir System or Wall Mount
  • Manual flow & power adjustment
  • Breaker power On/Off
  • Air switch button
  • Pressure regulator

Thermal Test Cycling Solutions

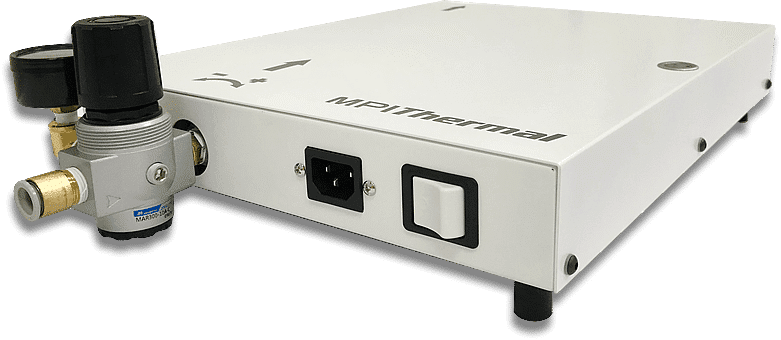

Optional External Purge Heater Module

The External Purge Heater Module can be used with ThermalAir Systems
Purge Adapters and Thermal End Effectors when an external
heated purge air source is needed. This is to help eliminate
frost and moisture in the surrounding test site area

Helps eliminate frost and moisture when testing
at ultimate cold temperatures for extensively long periods of time

This Optional Add-on Accessory is easily mounted on the ThermalAir
System rear panel or wall mounted

Separate External Purge Heater Module requires users facilities
CDA and or Dry Nitrogen Input Air

External Purge Heater Module can be used separately when heated purge air may be required

Bring Precise Temperature Directly to the Test

ThermalAir Accessories

The ThermalAir series of temperature testing and thermal cycling test systems have a wide range of accessories that are attached to the ThermalAir Stream Arm and Flex Hose located at the end of Thermal Head output gas nozzles.

They incorporate an intuitive full funtion for the ThermalAir users with the flexibility to accurately test in a variety of ways at the thermal test workstation.

The TA-5000A and TA-3000A series can also be used with an Thermal End Effector adaptors interfaced to the end of Thermal Head Arm and Stand, designed to adapt to the end users device under test. The exact use of this device depends on the users thermal test application.

Customize Your Temperature Testing Application

ThermalAir TA-5000A Accessories

Temperature Conditioning Chambers | High Temperature Glass Test Chambers

High Temperature Glass Chambers

Rectangular & Square Thermal Glass Cap Chambers | Temperature Conditioning Chambers

Rectangular & Square Thermal Glass Cap Chambers

Conductive & Non-Conductive High Temperature Shroud kit | Thermal Conditioning Chambers

Conductive  & Non-Conductive
High Temperature Shroud kit

Environmental Test Chamber |Temperature Conditioning Chamber

Compact Chamber Clamshell Model

Test Chamber Accessories

Flex Extender Air Transfer Hose
2Ft., 4Ft., 5Ft., 6Ft. Length
(Custom lengths available)

Temperature Test Enclosure

Compact Chamber Hood Model
