TA-5000A with Glass Cap

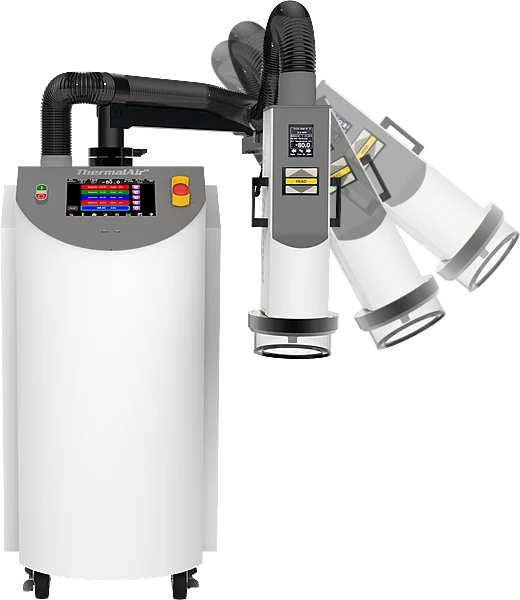

Flexible Temperature Testing & Thermal Cycling

The ThermalAir TA-5000A brings precise thermal testing capabilities directly to your test application. Bring temperature to the test site where thermal conditioning is required. In the engineering test laboratory or on the manufacturing production test floor, the ThermalAir TA-5000 temperature test systems provide flexible test solutions for an array test applications and technologies.

An Evolution in Localized Temperature Testing Equipment

Temperature Testing Systems | Temperature Simulation Test Systems

 Thermal Test Equipment –  Temperature Cycling Test –  Thermal Testing Solutions – Temperature Forcing Systems –  rapid Thermal Cycling

TA-5000A with Glass Cap



Thermal Test Chamber | Test chamber | Temperature Test Chamber

OUTPUT TEMPERATURE CONTROL

ThermalAir TA-5000A can control by user setting, the ramp rate, temperature transition time as fast as -55°C to +125°C in less than 10 seconds.



HOW DOES IT WORK

The TA-5000’s built-in air dryer and filtering system sends clean dry air (CDA) through its powerful internal chiller / heat exchanger to delivers hot & cold temperatures from -80°C up to +225°C.

User can control flow rate from 4 to 25 SCFM. The ThermalAir temperature systems are all self-contained. You just plug it in and it’s ready to start thermal testing your parts. [No configuration required]

Download the Datasheets



 Temperature Testing –  Thermal Test Systems – Temperature Test Equipment –  Thermal Test Equipment –  Rapid Thermal Cycling

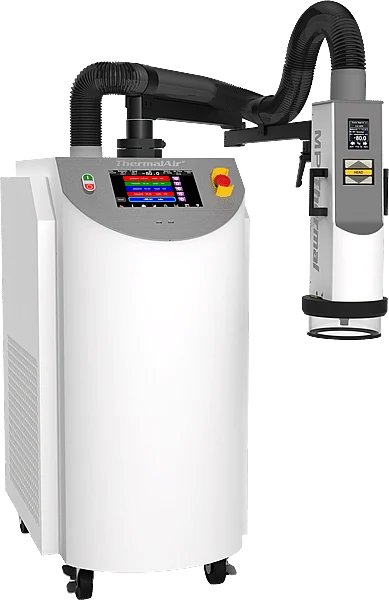

ThermalAir Temperature Forcing System



MPI ThermalAir temperature forcing systems provide a direct thermal stream of clean dry hot and cold air directly to the part that needs to be thermal tested. In the lab or on the production floor, ThermalAir Series provide unparalleled thermal stress testing capabilities for scientist and engineers.



  • Super Quiet DC Inverter Chiller Technology
  • -55°C to +125°C / +125°C to -55°C in less than 10 sec
  • Eco-Friendly – Up to 50% Energy Savings
  • Two built-in Touch Screen displays
  • Control Temperature at the Test Site
  • Standard Mode & Economy Mode
  • Up to 25 SCFM Output Air Flow

Customize Your Test Application with a Thermal Glass Enclosures

The TA-5000A ThermalAir stream system is be used with a Thermal Glass Cap Enclosures interfaced to the end of Thermal Head, Arm, and Stand, designed to adapt with the end users device under test. The exact use of this adapter depends on the users thermal test application. Our thermal glass caps and thermal accessories are used in accordance with test device and of PCB size, dimension, and how and where the test broad is populated with other components. We have a wide variety of sizes to fit your test.

Bring Precise Temperature Directy to the Test

Thermal Testing | Thermal Testing

System Performance



  • Airflow: High capacity 11.3 L/s (24 scfm) continuous airflow optimizes temperature transition rate and throughput.
  • Typical Temperature transition rate: -55° to +125°C – approximately 10 seconds / +125° to -55°C – approximately 10 seconds
  • Temperature Control: Environment Air or External DUT sensing directly at the DUT case to ±1.0°C
  • Temperature control Sensor Ports: Type T or Type K thermocouple, and RTD 100/1000 ohm
  • Temperature set, display and resolution: ±0.1°C
  • Temperature Accuracy: 1.0°C (calibrated to NIST standard)

Thermal Cycling Test System

More Features & Benefits…

  • Ultra Cold Temperatures maintained at 50&60Hz
  • Dual Touch Screens – front panel & thermal head
  • Plug-in anywhere from 200~250VAC, 1Ø
  • ECO smart DC system for up to 50% energy saving
  • No voltage configuration to use at different locations
  • Versatile Boom & Stand – Extended reach standard
  • SSD for thermal file management and data logging
  • Control Heated dry air purge for frost free operation
  • One touch Temp Cycle, Ramp, Soak and Dwell
  • Ultra low audible noise for quiet engineering lab use
Thermal Cycling Test System | Thermal Cycling Test Equipment

 Environmental Test Chambers –  Temperature Cycling Test –  Temperature Chambers –  Thermal Shock –  Temperature Testing Chamber

Easy Glass Cap Chamber Lock

The TA-5000’s built-in air dryer and filtering system sends clean dry air (CDA) through its powerful internal chiller / heat exchanger to delivers hot & cold temperatures from -80°C up to +225°C.

User can control ThermalAir output temperature flow rate from 4 to 25 SCFM
(
Continuous Gas Flow from -80°C to +225°C 24hrs/7days a week)! The ThermalAir temperature system is all self-contained. You just plug it in and it’s ready to start thermal testing your parts. [No configuration required].

The main temperature control of the TA-5000A is at the temperature thermocouple in the output gas nozzle. This is AIR MODE temperature control. The TA-5000A has a thermocouple imbedded in the tip of the output gas nozzle and needs no additional attached thermocouple sensors to control temperature of the ThermalAir system.

The TA-5000A has several ways to control temperature. The thermal stream system uses external thermo couples. The most common temperature thermo couple input temperature sensors the thermal stream using are T-Type & K-Type thermo couples. The MPI ThermalAir system also has multi-channel (resistance temperature detectors) RTD and Diode inputs for precise temperature control of the thermal stream system.

Temperature Forcing Systems – Temperature Forcing Systems –  Temperature Test Chambers –  Temperature Cycling Test –  Temperature Test Chambers

ThermalAir Color Touch Screen GUI

6 Users Friendly Easy Icons

  • MAIN  Users Defined Preset Temperature Settings
  • CYCLE  Hot/Cold Temperature Cycle User Profiles
  • SETUP Save/Load Temperature Parameters
  • UTILITIES Configuration, Calibration & Diagnostics
  • REVIEW Real-time & History  – Full Temperature Graphs
  • DATALOG  Chart Time & Temperature to USB

Customize Your Test Application with a Thermal End Effector

The TA-5000A ThermalAir stream system can be used with MPI Thermal End Effectors. These TA-5000A Accessories interfaced to the end of Thermal Head (No Tools Required). MPI thermal end effectors are designed to adapt with the end users device under test. The exact use of adapters depends on the users thermal test application. In many cases the very small devices such as 5G SMD are hard to reach test areas.

MPI Thermal end effectors and our integrated dry heated purge adapters can be used. All MPI thermal interfaces have a separate integrated dry purge for frost free test environment. MPI Thermal accessories are used in accordance with test device and of PCB size, dimension, and how and where the test broad is populated with other components. We have a wide variety of sizes to fit your test.

Bring Precise Temperature Directy to the Test

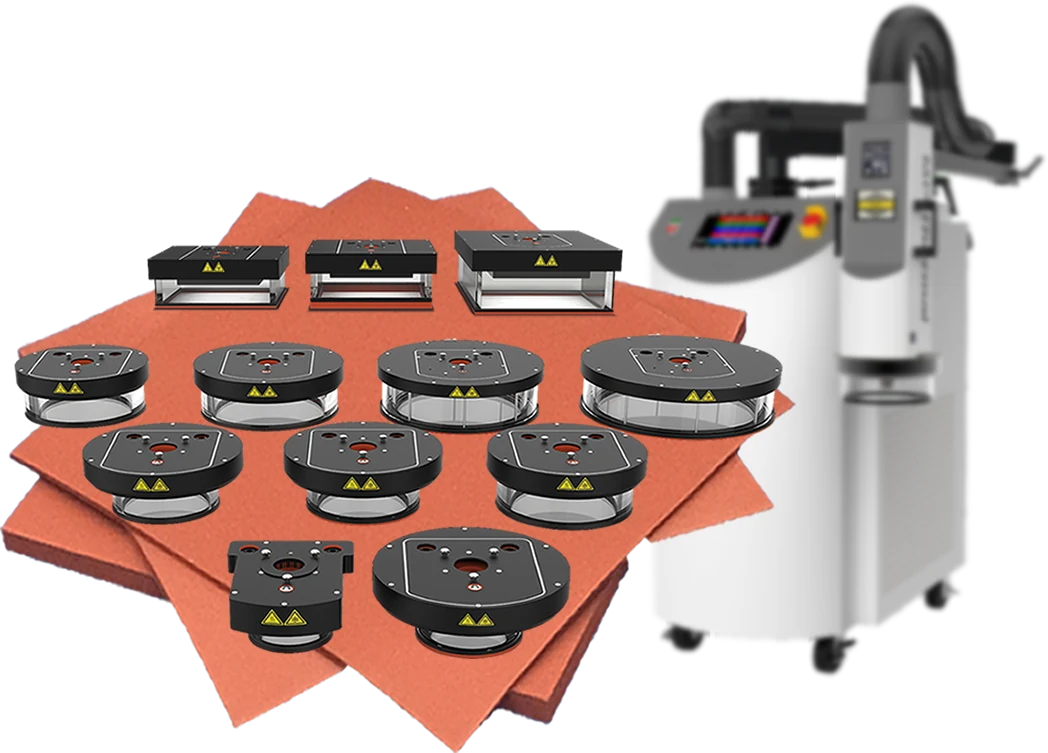

ThermalAir TA-5000A Accessories

Temperature Conditioning Chambers | High Temperature Glass Test Chambers

High Temperature Glass Chambers

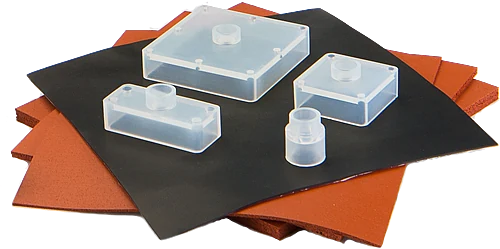

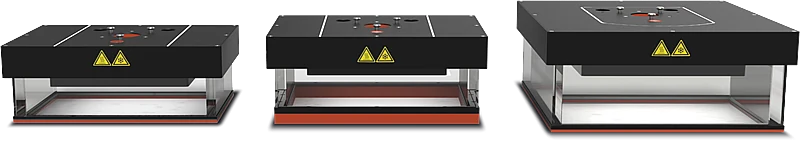

Rectangular & Square Thermal Glass Cap Chambers | Temperature Conditioning Chambers

Rectangular & Square Thermal Glass Cap Chambers

Conductive & Non-Conductive High Temperature Shroud kit | Thermal Conditioning Chambers

Conductive  & Non-Conductive
High Temperature Shroud kit

Environmental Test Chamber |Temperature Conditioning Chamber

Compact Chamber Clamshell Model

Test Chamber Accessories

Flex Extender Air Transfer Hose
2Ft., 4Ft., 5Ft., 6Ft. Length
(Custom lengths available)

Temperature Test Enclosure

Compact Chamber Hood Model
