ThermalAir TA-3000U (Under the Bench)
The Under Bench ThermalAir Series Temperature Forcing System

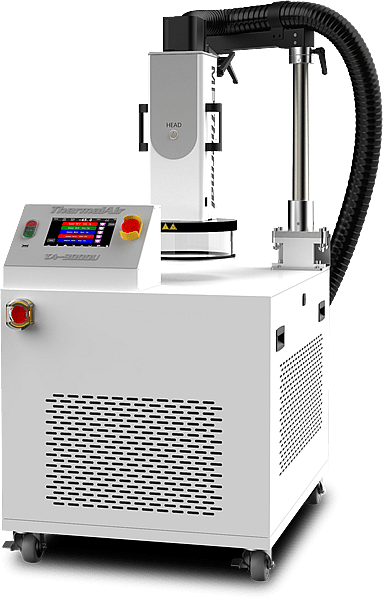

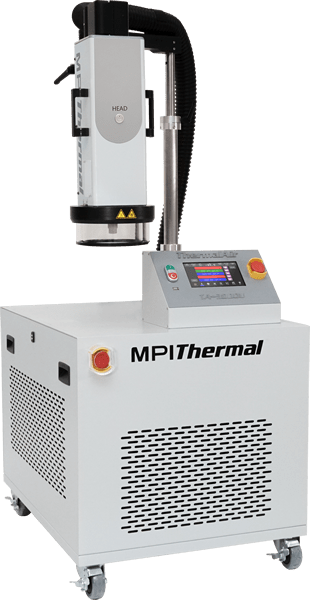

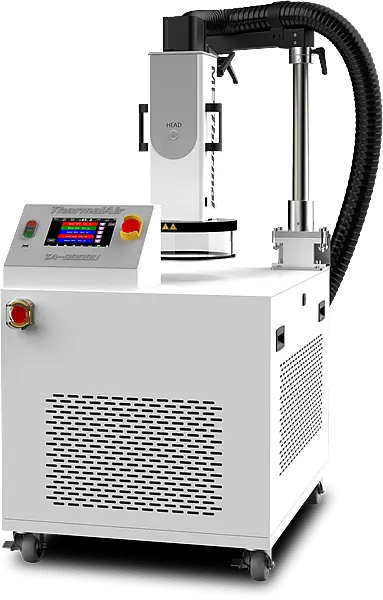

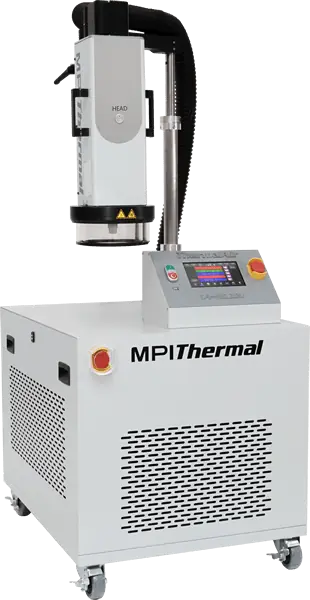

The ThermalAir TA-3000U high-capacity thermal air stream system is used for localized temperature inducing and thermal testing, rapid thermal cycling, and device characterization of semiconductor devices and other components, hybrids, PCBs, Optical Transceivers, electronic and non-electronic assemblies at precise temperature from -65°C to +225°C.
This Under the Bench system saves floor space by sliding the TA-3000U under the test bench in an engineering and production test environment.
Compact! Plus, Performance!
An Evolution in Rapid Thermal Cycling
-65°C to +225°C
50% Energy Saving
Temperature Cycling Test System | Thermal Test Systems | Thermal Cycling Test | Thermal Cycle Test | Rapid Thermal Test | Rapid Temperature Cycling
Rapid Thermal Cycling

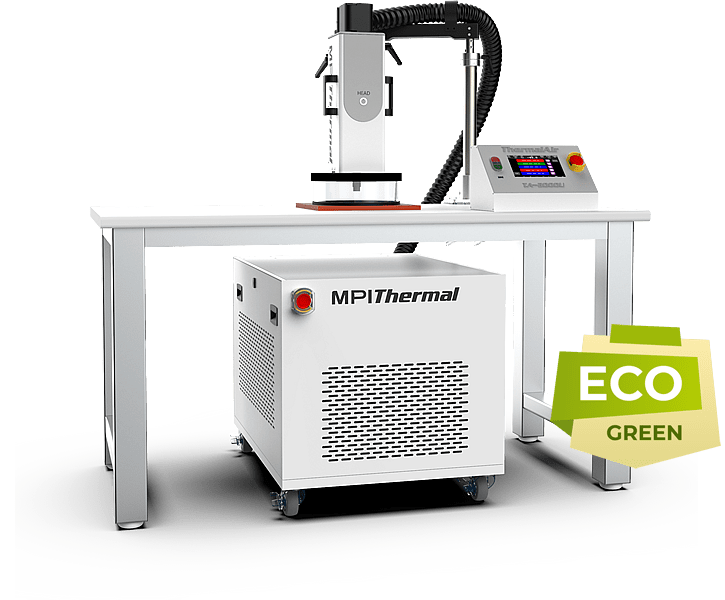

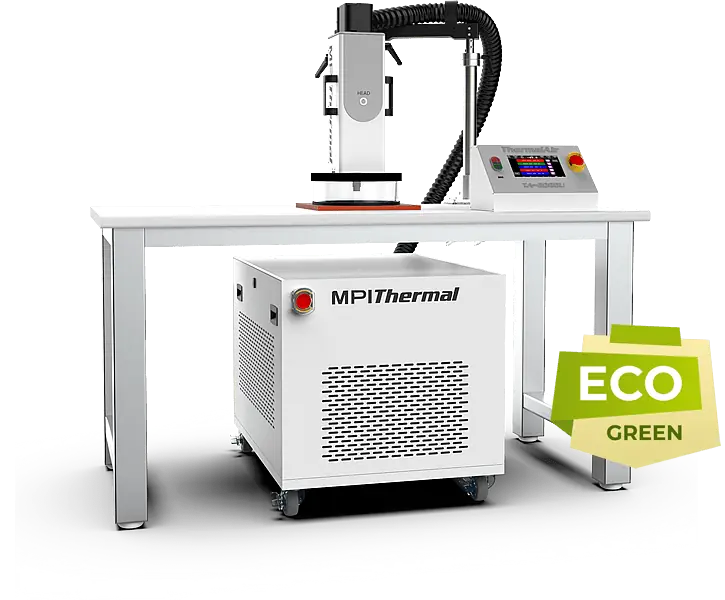

This Unique Under the Bench configuration is designed to save floor space by installing the TA-3000U right under the test bench.
In the High-Tech Industry such as in semiconductor manufacturing, floor space is at a premium. When floor space is a concern in small engineering labs or production test floors the TA-3000U answers the call.
The ThermalAir TA-3000U series of products has a wide range of temperature forcing capabilities. Benchtop -65°C to +200°C applications to temperature cycling -65°C to +225°C environmental stress test. The TA-3000U series are used for rapid thermal cycling testing in engineering product development test labs and production test floors for semiconductor IC devices and all kinds of electronic / non-electronic components, parts, and assemblies.
Thermal Test Cycling Solutions

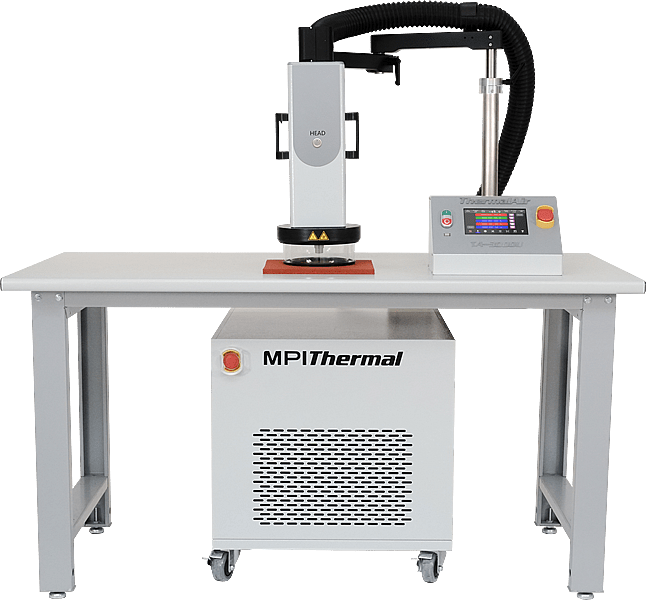

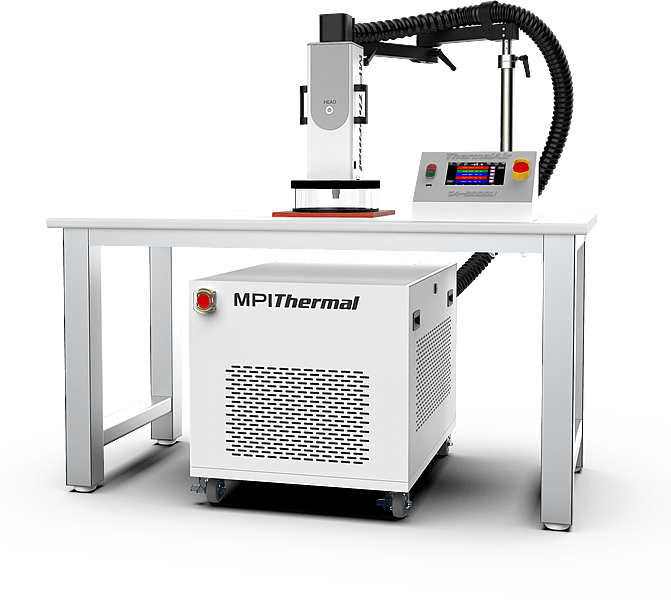

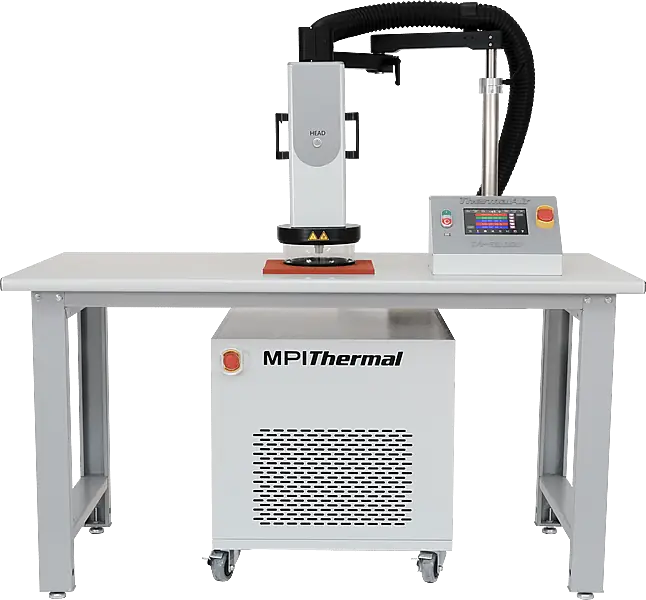

ThermalAir TA-3000U Benchtop Mounting for Thermal ARM & STAND
Click to Enlarge
Temperature Air Forcing Systems | Thermal Test Systems | Rapid Thermal Cycling | Thermal Cycle Test | Fast Thermal Test | Fast Temperature Cycling
Feature and Advantages
- Ultra Cold Temperatures are maintained at 50Hz or 60Hz.
- The System’s Touch Screen lets operator control temperature settings, ramp and cycle right at user test bench workstation.
- Plug-in Anywhere from 200 to 250VAC. No need for user voltage re-configuration when system moved to different locations.
- USB for thermal file management and data logging.
- A separate temperature controlled dry air purge for keeping surrounding test area frost free operation during long test times at extrerme cold temperatures.
- Two User Control Modes – Standard Operator & Temperature Cycle (Temp Cycle, Ramp & Soak).
- User Interface and Operations – Remote Control Compatible
- Modes for existing user test programs.- Center Control Color Touch Screen Display
– IEEE-488.2(GPIB), USB, Ethernet, Serial, LXI
– Intranet via LAN
– LabVIEW drivers
ThermalAir Color Touch Screen GUI
6 Users Friendly Easy Icons
-
MAIN Users Defined Preset Temperature Settings
-
CYCLE Hot/Cold Temperature Cycle User Profiles
-
SETUP Save/Load Temperature Parameters
-
UTILITIES Configuration, Calibration & Diagnostics
-
REVIEW Real-time & History – Full Temperature Graphs
-
DATALOG Chart Time & Temperature to USB
Temperature Air Forcing Systems | Thermal Test Systems | Rapid Thermal Cycling | Thermal Cycle Test | Fast Thermal Test | Fast Temperature Cycling
Full lnline Interface for all communication control Requirements
2 USB-Type A, 1 USB-Type B, IEEE-488, LAN, RS-232, T-Type, K-Type and RTD temperature sensors PLUS Auto Start Test & End of Test for automatic temperature cycling Hot-Cold-Amb.
All these are made for simple control and serviceability.
Download the Datasheets

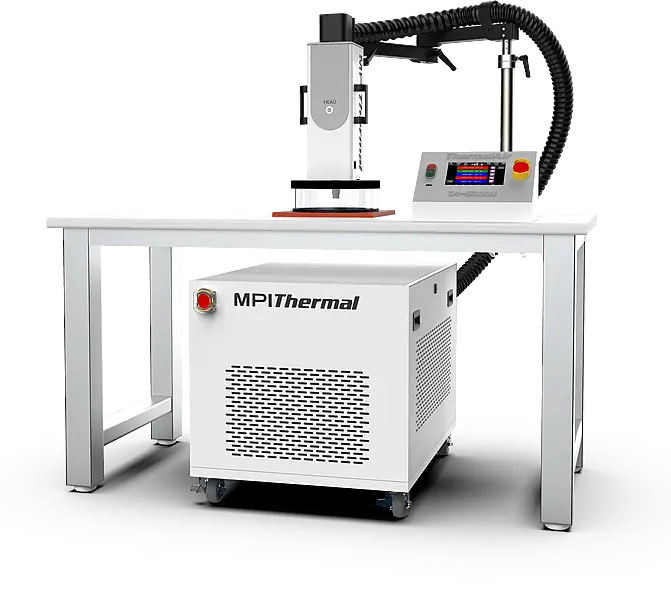

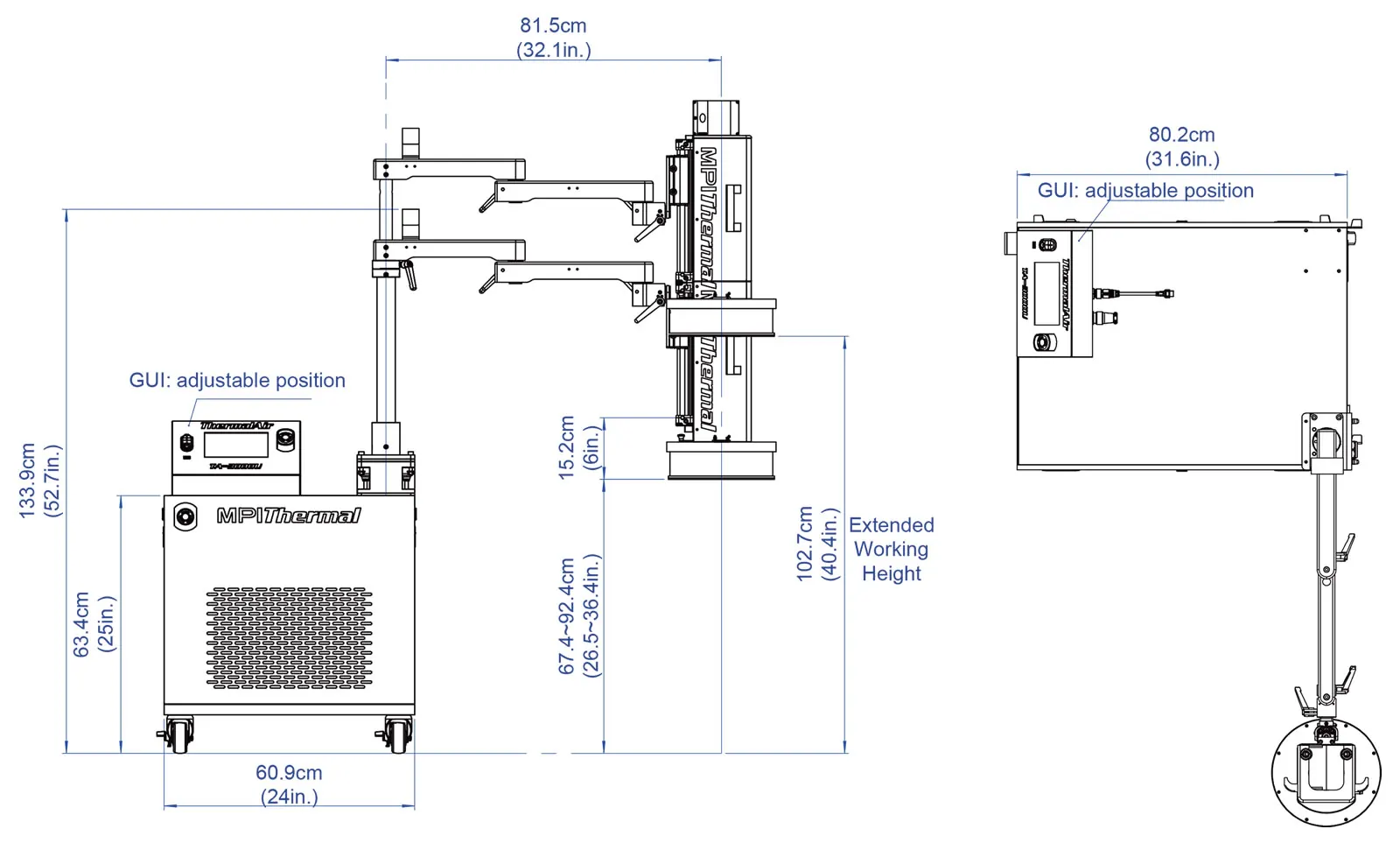

ThermalAir TA-3000U Modular Design for Efficient Factory Space

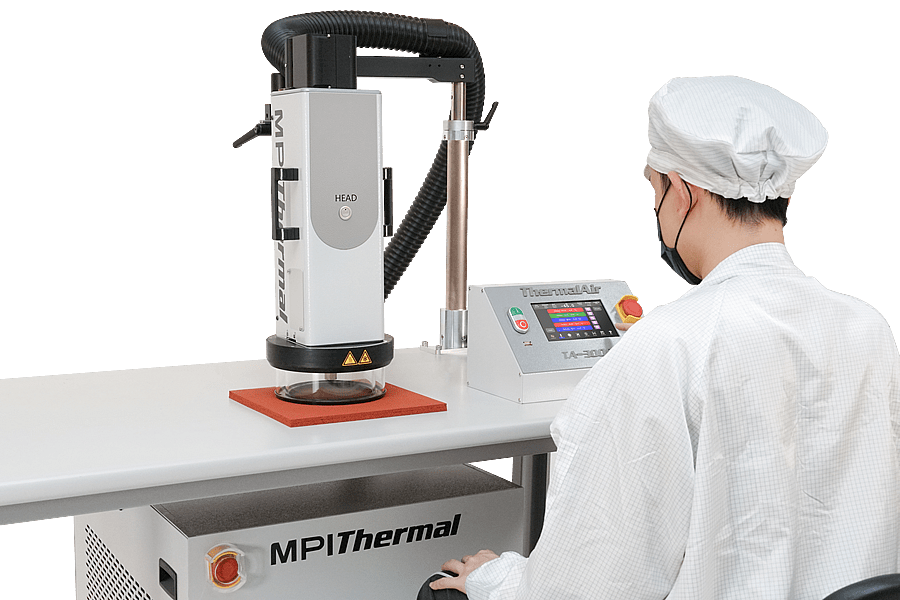

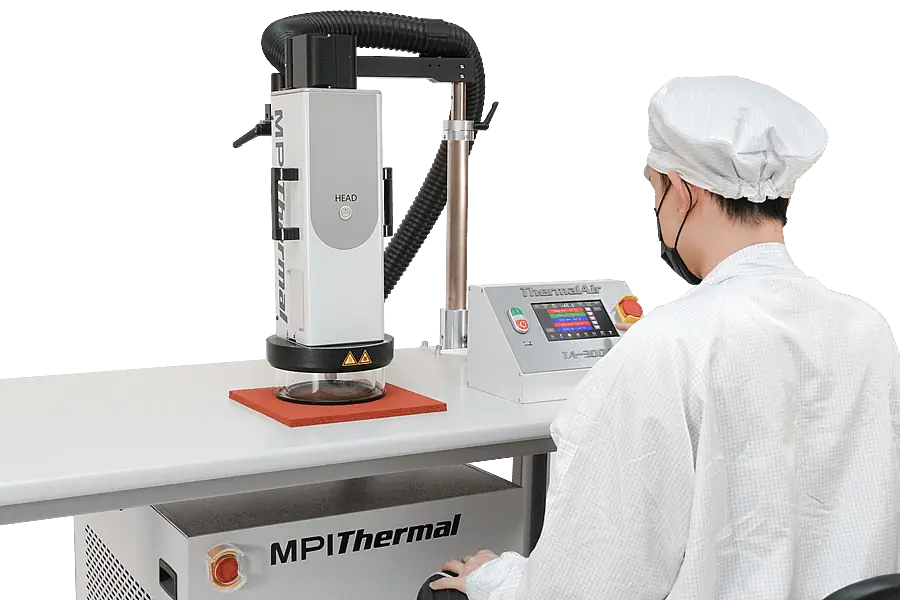

With factory and production test floor space at a premium, the TA-3000U was engineered with a modular, space-conscious architecture specifically for today’s test environments where every square foot counts. The “U” stands for Under-the-Bench, reflecting its low-profile design that seamlessly fits beneath lab test bench or out of the way on the production test floor. freeing up critical surface area in and around the workstations test area. This configuration is ideal where thermal testing is needed while saving floor space. Whether you’re performing hot and cold thermal cycling, characterization, or functional test at temperature, the TA-3000U lets you reclaim valuable workspace without compromising system performance.
The modular design of the TA-3000U extends beyond just its footprint. Its remote graphical user interface module (GUI) is fully detachable and can be conveniently placed where the test engineer requires, on the bench, mounted to a rack, or integrated within your workstation layout for ergonomic access. The TA-3000U ThermalAir system supports compact benchtop temperature test requirements without affecting or compromising on lab or test floor space in an engineering and or production test environment. Whether the ThermalAir system is installed in R&D or scaled into thermal testing in production, the TA-3000U saves floor space while providing precise localized Temperature Control for Hot and Cold testing right at the test station.
With the cost of semiconductor test/fab floor space (especially cleanroom and production areas) being extremely high — significantly more expensive than typical industrial space — because of the extreme environmental control and infrastructure required for semiconductor processes, the TA-3000U is designed to be modular allowing for more effecient and customizable set up, in the lab and on the production test floor.
Performance Plus!
The ThermalAir Temperature Inducing System is Environmental Friendly!
MPI Thermal TA-3000U temperature test system has 50% energy saving compared to similar temperature test chamber systems.
- No LN2 or CO2 required (Built in Chiller & Air Dryer)
- Eco-Friendly with up to 50% power energy savings
- Ultra-stable DC temperature control with Smart DC Energy efficient chiller
- No voltage or frequency configuration needed- one system worldwide
- Quiet low audible noise for engineering laboratory
- Built-in color touch screen display GUI. The front panel touch display easyicons makes for convenient user operation and intuitive user friendly menus
This Green machine does it without giving up temperature performance. Our new patented technology is designed to be Eco Friendly.
Its time to “GO GREEN”!
